Indoor spotlight LD20238

outdoorfor boatcockpit

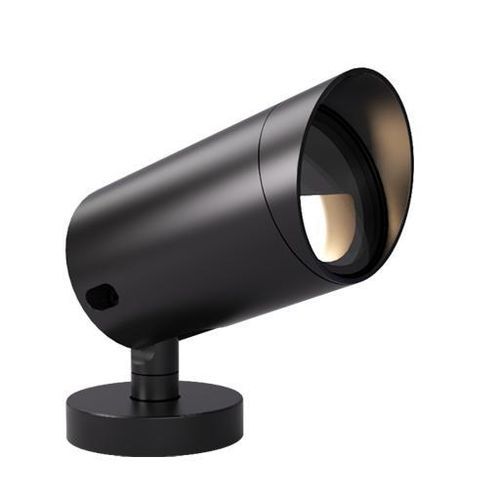

The LD20238 is our most powerful LED spotlight to date with a lumen output of over 1400lm (P1 Engine) enabling it to reach heights of over 20 metres. The 50mm lens assembly coupled with a wide range of high efficiency LED engine options ensures a wide range of superior beams, including an ultra-narrow 9° beam (E3 Engine) with a peak intensity of 15000cd, delivering exceptional performance for both indoor and outdoor lighting applications. The fitting is fully customisable with multiple glare control options including oval and half-moon glare shields, a honeycomb louvre, and both full and half cowls. Along with a variety of flexible mounting solutions, including a ground spike, and surface mount base with lockable rotation and tilt, as well as discreet cable exit options. It is an ideal choice for architectural landscaping and façade lighting. With a high ambient temperature tolerance of up to 50°C, the LD20238 excels in outdoor environments. It is IP67 rated and equipped with our Moisture Guard, and has been designed with a repairable engine, providing a robust circular solution for high-power spotlight applications. - Applications: External, Surface Mounted, Wall Wash, (900+ lm) Ultra range, NEW Product, Fifty Degree Ambient (50°C), CB Certified - Fixing: /SMB: Surface mount Base, /SAM: Surface adjustable mount, /SGS: Surface ground spike - LED Information: E3 LED engine - up to 10W @ 700mA; N1 LED Engine - up to 14W @ 700mA; P1 LED Engine up to 20W @ 500mA - Materials: Anodised aluminium body, with 316 stainless steel fixings - IP Rating: IP67 - Accessories: COWLS: /NC: No cowl, /HC: Anti-glare half cowl, /FC: Anti-glare full cowl, /GS20238: Glare shield, /GSOB20238: Oval beam glare shield, HL54: Honeycomb louvre Technical Specifications / Features: - Lumen output: over 1400lm (P1 Engine) - Beam options: Ultra-narrow 9° (E3 Engine), peak intensity 15000cd - Mounting: Surface mount base, surface adjustable mount, surface ground spike - Glare control: Oval/half-moon shields, honeycomb louvre, full/half cowls - Ambient temperature tolerance: up to 50°C - IP67 rated, Moisture Guard equipped - Repairable engine design - Material: Anodised aluminium, 316 stainless steel fixings
