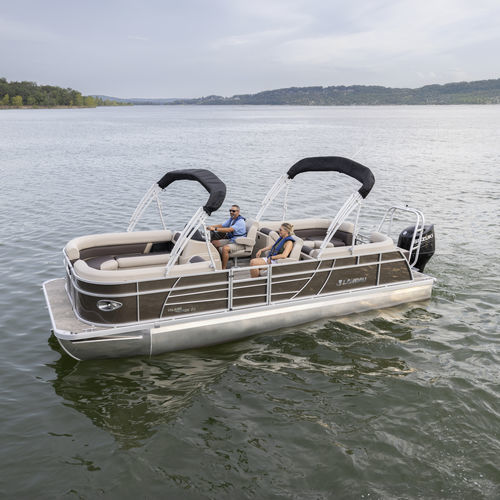

Multihull pontoon boat Island Breeze 23C Swing Back

outboardtri-tubeopen

Overview
The Island Breeze 23C is a versatile pontoon designed for family use and customizable performance. Standard installation supports up to 115 HP; optional upgrades and tri-log or Brutus tri-log configurations raise capacity and speed for towing or higher-performance cruising.

Floor Plans

• Standard floor plan with L seat
• Sport rear lounge
• Fish rear (fishing chairs & livewell)
• Rear lounge
• Swingback lounge
• Split rear lounge
• Sport cruise

Standard Equipment

• Two U-shaped pontoon logs with 0.100" gauge walls and nose cones
• Landau quality deck system
• Gate floor stops
• 2" aluminum extruded floor joists on 16" centers
• Rotationally molded seat frames with water management
• Marine-grade upholstery vinyls with protective finish
• 27 gallon direct-fill fuel tank built into motor well
• Fiberglass console with gauges

Standard Features (additional)

• Bluave® Bluetooth-ready AM/FM marine stereo
• Captain's chair with arms
• Port front chaise with table
• Stainless steel fasteners
• 3/4 spray shield
• L seating in rear
• Rear storage compartment (upgradable to changing room)
• Standard wheelchair-accessible bow gate
• 4 stainless steel cleats
• Woven vinyl flooring
• Bow & stern stainless trailer tie-down U-bolts
• Gauge package (tach, fuel, GPS speedometer)
• Stainless steel rear boarding ladder, 4 steps
• 12 V power outlet at console
• 8' color-coordinated bimini top
• Built-in cupholders

Exterior Color Options

• Merlot
• Deep Blue
• Pearl
• Matte Black
• Sage Green
• Mocha
• Charcoal
• Midnight Black
• Metallic Sand

Top Panel Options

• Charcoal
• Deep Blue
• Matte Black
• Merlot
• Metallic Sand
• Pearl

Interior Vinyl Options

• Grey
• White
• Taupe
• Cognac

Optional / Performance Equipment

• 25" transom
• Full spray shield for 2-log
• Full keel dual and tri-log options
• Tri-log package (includes 3/4 spray shield, 32 gallon gas tank)
• Upgrade to 46 gallon gas tank (requires Tri-Log)
• Full spray shield for tri-log
• 24 V trolling motor harness
• Lifting strakes (requires Tri-Log)
• HHP tag (lifting strakes, hydraulic steering) — requires Tri-Log
• HHP Tag Brutus (lifting strakes, hydraulic steering) — requires Brutus Tri-Log
• Upgrade to Brutus logs: .125" gauge wall, 28" log height
• Dual battery shut-off switch

Addons & Extras

• Twin bimini
• Power bimini
• Exchange bimini for wakeboard tower (split or sport rear lounge)
• Power wakeboard tower (requires Atlantis deck)
• Port rail cupholder
• Mooring cover
• Ski tow — walk-thru option
• Tetra pad (tube storage over ski tow)
• Ski storage in floor (requires Tri-Log)
• Portable cup holder(s)
• Wireless pocket charger

Console & Sound Upgrades

• Adjustable-height pedestal for helm chair
• Exchange helm chair for Atlantis captain's chair
• Tilt steering
• Hydraulic steering
• Power assist with hydraulic steering
• Upgrade to Atlantis console with 12" widescreen Simrad GPS and digital switching
• Add courtesy light on console
• Add hour meter
• Add in-dash depth gauge
• Add trim gauge (Honda, Mercury, Yamaha)
• Lowrance Eagle 5 GPS fish finder
• Simrad NSX 7" fish finder
• RGB speaker lighting
• Bluave upgrade kit (amp, subwoofer, 2 additional speakers)

Seating & Furniture Options

• Fish rear seating with cup holders, rod holders & livewell
• Rear lounge with 2 additional speakers
• Split rear lounge with 2 additional speakers
• Sport cruise (two forward captain's chairs)
• Sport rear chair exchange — co-captain chair for 30" couch
• Sport rear with 2 additional speakers
• Aeration for livewell front seat
• Swingback rear lounge with four additional speakers
• Extend L seat and decrease sunshelf to 14"
• Cell phone holder with charging port
• Removable gate couch
• Exchange chaise table for chaise drawer unit
• Add complete kidney-shaped table — Devil Wood (Tan) or Steel Blue (Grey)
• Add complete oval table — Devil Wood (Tan) or Steel Blue (Grey)
• Dressing room assembly
• Chaise dressing room assembly (with chaise lounge option)
• Trash receiver (requires chaise lounge)

Style & Appearance Options

• Upgrade to Atlantis deck
• Black painted rail package
• Chrome light housing with navigation & docking lighting
• Upgrade to Signature Lillipad Easy Step ladder
• Smoked chrome light housing
• LED under-seat lighting
• LED underwater lighting (transom)
• Trolling motor gate
• Docking lights
• Phender Pro — pair
• Top panel graphic
• Exchange standard cleats for fold-down cleats (2 pairs)
• Flooring upgrades

Tabular Specifications (BASIC)

• Options: -
• Overall length: 24 feet, 2 inches
• Deck length: 22 feet, 10 inches
• Beam: 8.5 feet
• Log number: 2
• Log size: 21 x 25 inches
• Log gauge: 0.100"
• Approx. weight: 2127 lbs
• Max passengers: 11
• Max capacity: 2147 lbs
• Max horsepower: 115 HP

Tabular Specifications (TRI-LOG)

• Options: Tri-Log
• Overall length: 24 feet, 2 inches
• Deck length: 22 feet, 10 inches
• Beam: 8.5 feet
• Log number: 3
• Log size: 21 x 25 inches
• Log gauge: 0.100"
• Approx. weight: 2382 lbs
• Max passengers: 12
• Max capacity: 2567 lbs
• Max horsepower: 150 HP (200 HP with HHP)

Tabular Specifications (BRUTUS TRI-LOG)

• Options: -
• Overall length: 24 feet, 2 inches
• Deck length: 22 feet, 10 inches
• Beam: 8.5 feet
• Log number: 3
• Log size: 21 x 28 inches
• Log gauge: 0.125"
• Approx. weight: 2509 lbs
• Max passengers: 13
• Max capacity: 2664 lbs
• Max horsepower: 150 HP (200 HP with HHP)

Technical specifications

• Model: Island Breeze 23C
• Overall length: 24' 2"
• Deck length: 22' 10"
• Beam: 8.5'
• Available log configurations: 2-Log, Tri-Log, Brutus Tri-Log
• Standard log size: 21 x 25" (Brutus variant 21 x 28")
• Standard log gauge: 0.100" (Brutus .125")
• Approx. weight: from 2127 lbs (2-Log) up to 2509 lbs (Brutus Tri-Log)
• Max passengers: 11 (2-Log) / 12 (Tri-Log) / 13 (Brutus Tri-Log)
• Max capacity: 2147 lbs (2-Log) / 2567 lbs (Tri-Log) / 2664 lbs (Brutus)
• Max horsepower: 115 HP (standard) — up to 150 HP (Tri-Log/Brutus), 200 HP possible with HHP
• Fuel tank: 27 gallon direct-fill in motor well (upgrade options available)
• Transom: 25" (performance option)
