Oil cooler OAC

oil cooler
oil cooler
oil cooler
Add to favorites
Compare this product


Description

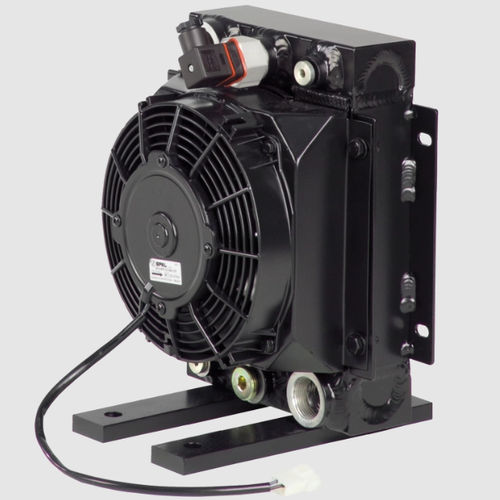

High-performance cooling for stationary hydraulics and mobile machines Compact and high-performance oil cooler type OAC standard. Standard fan drive consisting of 230/400V motor, 12V/24V fan and hydraulic fan drive. In addition available with electric motor and 60 Hz frequency. Besides the versions ""maritime"" and ""ATEX"" this series is available in combination with thermal bypass valves or pressure bypass valves. The cooling elements originate from our own production line in our cooler production plant located in Jiaxing, China. Our compact and high-performance oil/air coolers are available in 12 sizes for cooling hydraulic and lubricating oils. The OAC oil/air cooler pumps the following media: hydraulic oil, gear oil, lubricating oil, engine oil, water glycol. Features Easy to service and good options of cleaning Low sound pressure level CE marking Painting suitable for maritime applications (CDP + powder painting) Pressure bypass 4 and 6 bars Thermal bypass Performance range: 0.1 - 350 kW Max. oil volume flow: 2 - 750 l/min Fan drive 12V, 24V, 230/400V-50 Hz, 230V single-phase, hydraulic Static operating pressure up to a maximum of 26 bars
