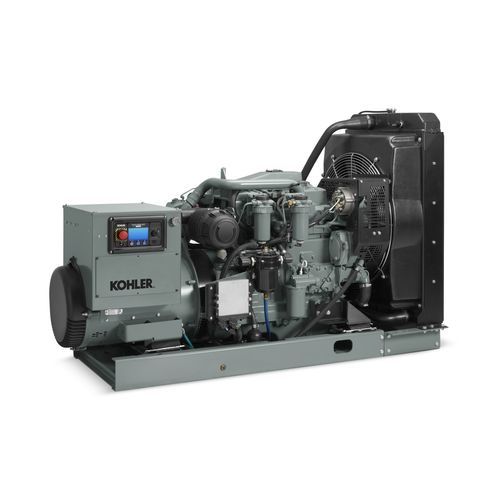

yacht generator set / diesel
45 kW (61.2 hp)
Engine is Environmental Protection Agency (EPA) Tier II compliant
One-side serviceability of fuel system, lubrication system, and air cleaner
PTO options: SAE C-splined 12- or 24-volt electric clutch
Prime power rated
Superior KOHLER Fast-Response X (TM) PMG generator ends
Class H insulation
12-lead reconnectable alternator
The generator complies with NEMA, IEEE, and ANSI standards for temperature rise.
The alternator uses a permanent-magnet, Fast-Response(TM) excitation system.
The alternator has a two-thirds pitch stator and skewed rotor.
The Decision-Maker (R) 3500 controller incorporates a solid-state voltage regulator.
The brushless, synchronous generator is broadrange and reconnectable.
The windings are vacuum-impregnated with fungus-resistant epoxy varnish.
The generator sustains short-circuit current up to 300% of the rated current for up to 10 seconds.
