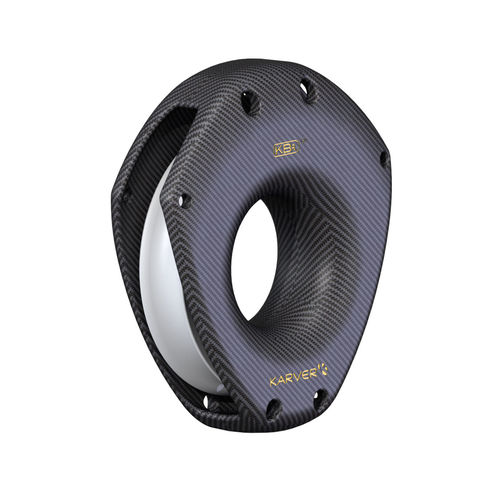

Single block KBRC250
high-resistancelashingroller bearing

Single block - KBRC250 - Karver Systems - high-resistance / lashing / roller bearing
Single block - KBRC250 - Karver Systems - high-resistance / lashing / roller bearing
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
high-resistance
Configuration
lashing
Bearing type
roller bearing
Maximum line diameter
max. rope ø 30 mm
Application domain
for racing sailboats, for yachts
Material
carbon, titanium
Working load

25,000 kg
(55,115.6 lb)

Breaking load

50,000 kg
(110,231.1 lb)

Thickness

69 mm
(3 in)

Center diameter

70 mm
(3 in)

Weight

2,017 g
(71 oz)

Description

The KBRC250 is the carbon version of our range of KBR blocks devoted to Racing and Super Yachts. It is a very low friction lashing block designed for larger loads. It is aboard the Ultims, Imocas, and many Super Yachts. Very few blocks on the market can display a coefficient of friction of 2% on very high loads. Titanium sheave, titanium rollers, ceramic side balls and painted carbon flanges. The KBRC is certainly the most efficient block on the market. Strengths – Used on many racing yachts & super yachts – Reliable and resistant even under very heavy load – Carbon flanges – Titanium sheave for weight and resistance – Titanium roller bearing and lateral ceramic balls on treated titanium raceways (Karver patent) – Compact tulip sheaves – Minimal friction even under very high load (2%) – Impressive longevity of the bearings (due to the low friction) – Anti-overturning shape. The pulley remains straight whatever the direction of the effort – Very generous central space to come and fix several lashings (low runners for example) – The lashing in the middle is also too big a guarantee of safety. If the pulley breaks (for external reasons of course!), The lashing will still retain the rope while the installation is secure. – A real design that stands out from other pulleys on the market – Range from 1.5 T to 40 T. We keep ALL models up to KBRC160 (16T) in stock). – Available with a leather (KBRCL) or wood (KBRCW) finish – Also available with aluminum (KBR A) or stainless steel (KBR M) flanges)
