Pneumatic horn Z-320-SC

electricfor ships 75-200 m

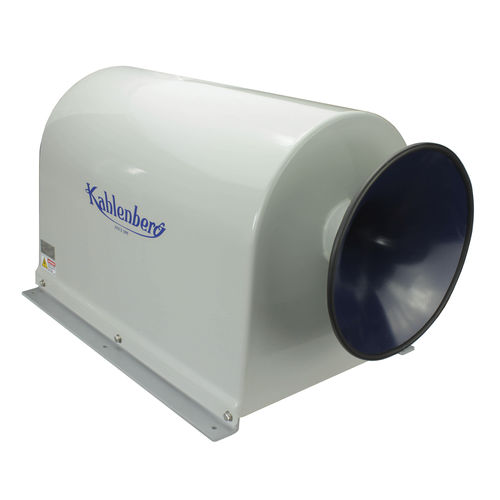

The Kahlenberg Model Z-320-SC Self Contained Pneumatic Horn represents a new concept in sound signaling for vessels over 75 meters in length. Using an internal, direct drive air source, this new horn is pneumatic in nature but requires no external compressed air source. Only one low amperage A.C. single phase or three phase electrical connection is required for power. Completely contained in a thermostatically controlled, heated, IP-56 enclosure, the Z-320-SC offers a new standard for reliability and longevity in harsh marine environments, previously only matched by a pneumatic horn that requires an external air source. The Z-320-SC utilizes a special motor controller, Kahlenberg Model M-66, for use with 50 Hz A.C. power applications. Type approved for vessels 75-200 meters in length Self-contained, no external air supply required Thermostatically controlled heating for extreme climates Highly reliable, lowest installation cost Exceptional corrosion resistance Rated for continuous duty Available in single or three phase 50/60 Hz. A.C. versions Heated?: Yes Fundamental Frequency 330 Hz Power Consumption 8.6 amps @ 230 Volts 1Ph, 2.4 amps @ 460 volts 3Ph Electrical Power Required 110-240 V.A.C. 1 Ph 50/60Hz, or 230/460 V.A.C. 3 Ph. 50/60Hz Audibility 1.5 nautical miles (IMO) Materials Brass horn body, reinforced fiberglass enclosure, aluminum base Operating Temperature -40ºC to +69ºC [-40ºF to +140ºF] Degree of Protection IP 56 Basic Dimension 895x533x520mm [35.25x21x20.5
