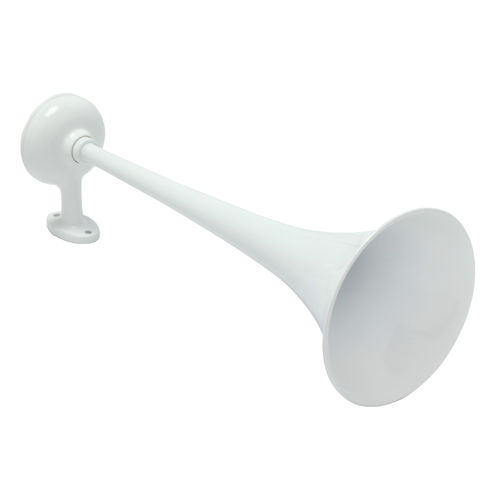

Pneumatic horn S-330 WHITE

for ships 20-75 m

The S-330 Air Horn has been designed to minimize air consumption, and maximize sound pressure output, while retaining the superior finish and durable construction Kahlenberg Air Horns are famous for. The S-330 is much lighter, and significantly smaller than other horns of similar output, yet is certified to IMO Requirements for vessels up to 75 Meters in length, and can be powered by extremely small compressed air systems to minimize associated cost and space requirements on board. For vessels less than 75 Meters in length Meets or exceeds IMO Requirements Low Air Consumption, operates on a wide range of air pressure Highly reliable, virtually no maintenance required All brass construction with titanium sounding diaphragm Heated? - No Fundamental Frequency: 330 Hz Air Consumption: 9 C.F.M. @ 100 p.s.i., 4.2 l/s @ 7 bar Air Pressure Required: 50 to 200 p.s.i., 3.5 to 14 bar Electrical Power Required: Any standard A.C. or D.C. Voltage Material: Cast Bronze and Spun Brass Net Weight: 4.75 lbs., 2.15 kg., Finish: TGIC Sky White Powdercoat or Kahlenberg Chrome Plate Finish
