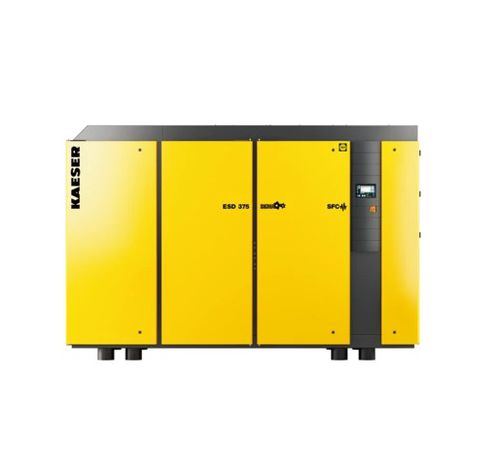

Ship compressor ESD 445
screwstationary

ship compressor
ship compressor
ship compressor
Add to favorites
Compare this product


Characteristics

Applications
for ships
Technology
screw
Portability
stationary
Pressure

8 bar, 14 bar
(116 psi, 203 psi)

Flow

Min.: 1,716 m³/h
(60,600 ft³/h)

Max.: 3,031 m³/h
(107,039 ft³/h)

Power

250 kW, 315 kW
(340 hp, 428 hp)

Length

3,540 mm
(139 in)

Width

1,100 mm
(43 in)

Height

2,250 mm
(89 in)

Description

You can meet virtually any compressed air demand with fluid-injected rotary screw compressors from Kaeser. We offer a huge selection of compressors ranging from 18.5 kW right up to 315 kW. All models are equipped with energy-saving 1:1 direct drive. The motor drives the airend directly without transmission loss via a maintenance-free coupling. All our compressors are specially adapted for maritime use. Matched to your specific circumstances, we have the right solution for every application on every ship. You can choose between the following models: for integration in your compressed air station: our basic model with refrigeration dryer for high compressed air quality: T versions (ASD, BSD, CSD, CSDX and DSD series) with variable-speed drive for optimal efficiency and broad control range: SFC models New: With synchronous reluctance motor: Significantly greater efficiency - especially in the partial load range - than comparable asynchronous systems enables considerable energy savings. Your advantages Exceptional efficiency: The use of IE3 motors has been mandatory in the EU since January 2015. Furthermore, we already use IE4 motors in our BSD – FSD models with 1:1 drive to provide you with even further energy savings. Longer service life: Electronic thermal management dynamically controls the fluid temperature of ASD, BSD, CSD, CSDX, DSD, DSDX, ESD and FSD series compressors. This not only saves additional energy, but also reliably prevents condensate formation and associated moisture damage.
