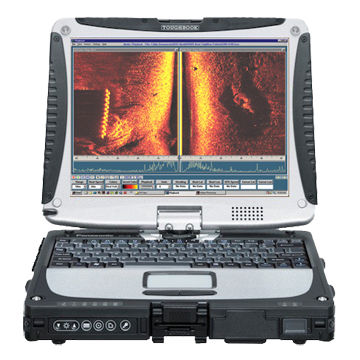

Oceanographic survey sonar SUB
side scanportable

oceanographic survey sonar
oceanographic survey sonar
oceanographic survey sonar
oceanographic survey sonar
oceanographic survey sonar
oceanographic survey sonar
oceanographic survey sonar
Add to favorites
Compare this product


Application domain
for oceanographic surveys
side scan
Other characteristics


Pole mountable or boat towable For more action shots, check out our Photos/Videos page Sub Bottom Profilers are one of the most effective tools used to identify and characterize layers of sediment or rock under the seafloor. The sub bottom profiler is similar to that of a simple echo sounder. A transducer releases a sound pulse vertically downwards towards the seafloor, and a receiver records the return of the pulse once it has been reflected off the seafloor. Unlike a simple echo sounder, parts of the sound pulse will penetrate the seafloor and be reflected off of the different sub-bottom layers or strata layers. This will show any sort of density disturbance which will indicate to the user that there is something foreign beneath the surface. Fishers' SBP-1 has an advantage over most other competition as this unit is either pole mountable for shallow water searches or boat tow-able for search in deeper areas allowing superior versatility for the end user. The SBP-1 system includes the sonar towfish constructed of corrosion proof, high impact PVC, 150’ of cable (additional lengths are available up to 1,000 feet), the topside sonar processor box and laptop computer pre-loaded with the JW Fishers SONAR VIEW for Sub Bottom Profiler software. The 36-inch-long by 24-inch-wide towfish provides a very stable platform for the sonar transducer allowing the best possible images to be obtained. The SBP-1 is capable of penetrating up to 130 feet into the seabed. The sonar beam reflects off any solid objects below the seafloor and is sent topside for display and storage on the computer. An image is produced of any target of different density than the surrounding substrate.
