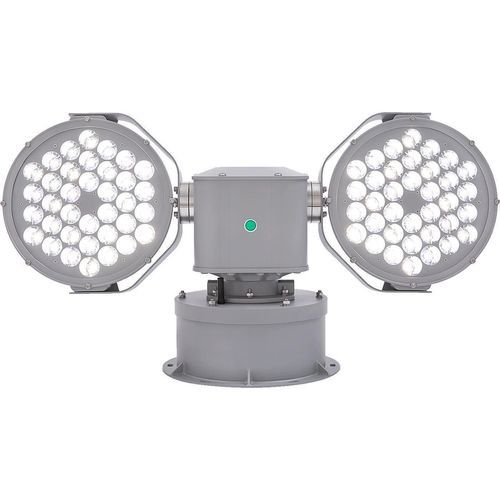

Search searchlight JN-MSL200

for professional boatsshipsfor work boats

Overview
Double 200W marine LED searchlight offering an adjustable beam angle and continuous (unlimited) PAN and TILT rotation for search and rescue, port and marina operations, and vessel navigation. Suitable for inland vessels, ocean-going ships and harbour tugs; ideal for approaches to ports, locks, docks and loading/unloading operations.

Main product highlights

• Adjustable beam angle
• Continuous (unlimited) rotation in TILT sector
• Continuous (unlimited) rotation in PAN sector
• Independent control for each lamp
• Includes wired control panel for wheelhouse and wireless remote for vessel-wide control
• Multiple lights can be synchronized and controlled from a single panel or remote
• Reinforced tempered safety glass lens
• Available colour temperatures: 4000K, 5000K, 6500K
• Nominal lifetime up to 50,000 hours
• 3-year warranty

Control & operation

• Wired control panel for wheelhouse operation
• Wireless remote for vessel-wide operation
• Synchronization of multiple units from one panel or remote

Applications
Search and rescue, harbour and port approaches, marina operations, lock and dock handling, loading/unloading assistance; suitable for inland waterways and ocean-going vessels.

Standard housing colours

• Black Marine powder coat Graphite Black - RAL9011 - gloss level
• White Marine powder coat Traffic White - RAL9016 - gloss level
• Grey Marine powder coat White Aluminium - RAL9006 - gloss level

• * Other colours available on request.*

Media & documents
Product page includes an embedded video demonstrating the searchlight and a downloadable specification brochure (spec sheet / series PDF).

Technical specifications

• Configuration: Double lamp searchlight
• Power: 200W (nominal)
• Beam: Adjustable beam angle
• Tilt sector: Unlimited rotation
• Pan sector: Unlimited rotation
• Control: Wired control panel + wireless remote
• Multi-unit control: Synchronizable multiple lights controllable from a single panel/remote
• Optical / color temperatures: 4000K, 5000K, 6500K
• Lens / protection: Reinforced tempered safety glass
• Lifetime: Up to 50,000 hours (nominal)
• Warranty: 3 years
• Standard housing colours: Black (RAL 9011), White (RAL 9016), Grey (RAL 9006)
