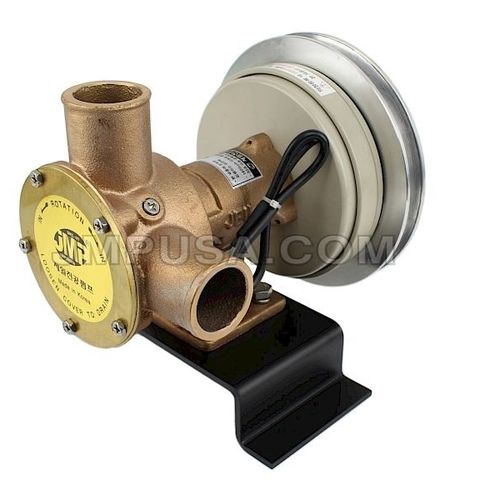

Marine pump JPR-M40LH1B24
transferimpellerelectro-magnetic

marine pump
marine pump
Add to favorites
Compare this product


Characteristics

Application domain
marine
Applications
transfer
Technology
impeller
Operation
electro-magnetic
Flow rate

268 m³/h
(9,464.33 ft³/h)

Description

#JPR-M40LH1B24 JMP Marine 24V Multi-Purpose Electro Magnetic Flexible Impeller Clutch Pump SKU: JPR-M40LH1B24 Includes: 24 Volt Electro-Magnetic Clutch Pump JPR-M40LH1B24 QTY: 1 Product Information & Specs: Port Size: 1.5" Port Type: Hose Body: Bronze Uses JMP Impeller p/n: 8001-01 Shaft Material: Stainless Steel Shaft Seal: Mechanical Seal Pulley Size: 8" Pulley Type: B Section, Belt Pulley Groove Qty: 1 Clutch: Electro-Magnetic 24V Flow (1800rpm): 268 Liter/Min (70 US Gallons/min) Size (L x W x H): 237mm x 205mm x 205mm Weight (Approx): 33 lbs (15.0 kgs) Service Kit (*Sold Separately): JSK0009 Product Features: High Power (High Torque), High Capacity Marine Grade Shaft (3X Series Non-Magnetic) Aluminum Pulley - Reduce Belt Temperature (M40, M50, M65) Easy to Change Pulley Strong Bronze Body Powder Coated Clutch Surface to Resist Rust Common Uses & Applications: Marine Industrial Agricultural, Farming Plumbing and Home Emergency Use Public Utilities and Municipalities
