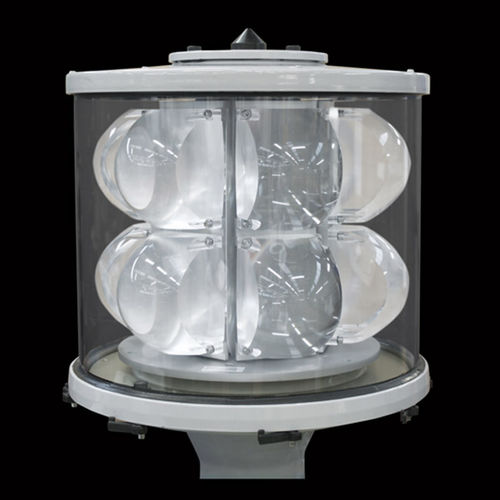

Port signalling light VRB-25
LEDincandescentred

port signalling light
port signalling light
Add to favorites
Compare this product


Characteristics

Application domain
port
Light source
LED, incandescent
Color
red, green, yellow, blue
Mounting
rotating, panel
Protection level
IP65
Service temperature

Min.: -35 °C (-31 °F)

Max.: 50 °C (122 °F)

Weight

43 kg (94.8 lb)

Width

507 mm (20 in)

Height

482 mm (19 in)

Description

This long range rotating beacon comes in 6 or 8 panel versions. Each panel on the VRB-25 is individually controlled, which provides greater versatility when compared to traditional rotating beacons. Each panel can be a different colour or panels can be turned on and off to create a variable flash character. In addition, multiple LED chains can be used on each panel to allow for redundancy should a fault occur in one of the LED chains.The control electronics via slip rings are based on the system used in the original incandescent version of the VRB-25. Features & Benefits Weatherproof enclosure suitable for external mounting Constant-current LED drivers Direct-drive brushless motor 1 to 15.9RPM rotation speed with 240 increments Day and night intensity is adjustable from 0 to 100% Automatic day/night detection Programmable low-voltage cut-out Selectable master/back-up operation mode Digital inputs/output RS232 port
