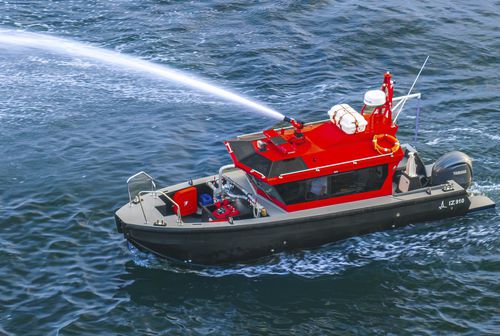

Fireboat IZ 910 PE AL FF

inboardoutboardHDPE

The IZ 910 PE AL FF is a fire fighting boat featuring an HDPE construction hull and marine grade aluminum superstructure. It is designed to accommodate both outboard and inboard engines, with a waterjet propulsion system. The vessel includes a centrally located wheelhouse for optimal all-around visibility and shock absorber seating for crew and passengers. The hull, designed by GM, can be optimized for various propulsion systems, offering a balance of speed and maneuverability. The vessel is capable of reaching speeds up to 35 knots, depending on specifications and engine options.

Technical Specifications

• Length Overall: 9.10 m
• Beam: 3.00 m
• Draught: 0.48 m
• Material: HDPE Hull + 5083 AL Superstructure
• Seats and camara: 8+2
• Propulsion: Outboard
• Engine: 250 Hp Yamaha
• Speed: 25+ kts
• Class Society: CE Category C
• Delivery Upon Order: 30 weeks

Standard Equipments

• Fuel 200 Liters with level controls fuel system
• Fresh Water 100 Liters with level controls
• Foam 50 Liters
• Main Engine Yamaha 250 HP Outboard
• Mooring bits, Fairleads
• Towing cross bollards
• 'D' Section rubber fender all around deck level; all cabin windows are watertight with tempered glasses
• Watertight aft cabin door
• 2 Shock absorber seats for crew
• Electric Wipers with heater on front Windows
• Guard Rails (Fixed deck guard rails and hand rails)
• Bilge System (Automatic electric bilge pumps, bilge alarm)
• Fire System (Automatic fire detection for boat in closed area)
• Fire Pump (Gasoline/Diesel engine driven pump set, Capacity: Flow(max):2000 lpm, Head(max): 8 bar)
• Foam Tank 100 liters
• Foam/Water Monitor (Roof top manually/remote controlled monitor with minimum flow rate:100 lpm @8 bar)
• Fire Hoses (2 x 20 meters with 45 mm diameter hoses)
• Adjustable nozzles with foam and water settings
• Fire Extinguishers (ABC Dry powder chemical (2) each 6 kg)
• 12 V DC Network
• Start battery and service battery groups
• Battery charger for battery groups supply from main engine
• Deck lights
• Courtesy lights
• 24 NM range marin radar
• GPS and Chartplotter (Integrated navigation system)
• Marine VHF
• Searchlight (LED navigational lights, Marine searchlight R/C from)
• Magnetic Compass (Wheelhouse 12V)
• 100 Watt LED
• Horn
• (2) pieces Life Buoy (SOLAS Approved with automatic lights)
• (10) pieces Life Jacket (SOLAS Approved)
• Life raft (SOLAS Approved) for (10) persons
• EPIRB

Optional Equipments

• All items as seen on the GA Plan drawing and in these specifications are standard. Requests with other equipment and changing specifications are optional. General Arrangement can be changed without notice.

Characteristics / Technical Specifications

• Length Overall: 9.10 m
• Beam: 3.00 m
• Draught: 0.48 m
• Material: HDPE Hull + 5083 AL Superstructure
• Seats and camara: 8+2
• Propulsion: Outboard
• Engine: 250 Hp Yamaha
• Speed: 25+ kts
• Class Society: CE Category C
• Delivery Upon Order: 30 weeks
