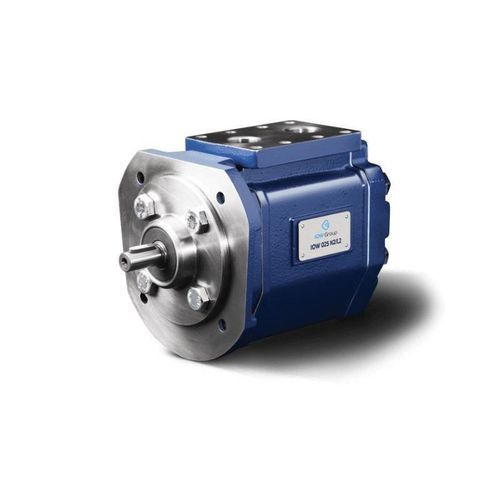

Marine pump Mechline 025 N2/L2

transferrefuelinglubrication

Overview
Self lubricating triple screw positive displacement pump designed for long, low‑maintenance operation. Suitable for flow volumes of 11 - 42 l/min (3 - 11 gpm). Power is transmitted from an electric motor via a flexible coupling. The pumped fluid is enclosed by a shaft seal and the pump incorporates an internal pressure relief valve for protection.

Advantages

• Designed for extended, trouble‑free operation
• Self‑lubricating design
• Compatible with a wide range of liquids
• Can be certified to various classification societies
• Same‑day dispatch available for spare parts
• Environmentally friendly design considerations
• Angle bracket included to simplify mounting

Applications

• Supplying fuel and lubrication to diesel engines
• Transferring oil in refineries, tank farms and on board ships
• Used in large machinery, hydraulic systems and transformer oil circuits
• Lubrication of gears, hydro turbines, steam or gas turbines and paper machines

Related Mechline models (page items)

• 025 N2/L2 — flow vol. 11 - 42 l/min
• 032 N2/L2 — flow vol. 21.6 - 95.2 l/min
• 038 K2/N2/D2 — flow vol. 46 - 179.8 l/min
• 125 N3/L3 — flow vol. 11 - 42.5 l/min
• 225 N2/L2 — flow vol. 11 - 42 l/min
• 232 N2/L2 — flow vol. 21.6 - 95.2 l/min
• 238 K2/N2/D2 — flow vol. 46 - 179.8 l/min
• 345 N2/K2 — flow vol. 80 - 268 l/min
• 352 N2/K2 — flow vol. 125 - 418 l/min

Datasheet
Datasheet available for the IOW 025 N2/L2 (product datasheet referenced on the page).

Technical characteristics / specifications

• Flow volume: 11 - 42 l/min (3 - 11 gpm)
• Max differential pressure: 16 Bar (232 psi)
• Power transmission: electric motor via flexible coupling
• Pumped fluid enclosed in the pump using a shaft seal
• Pressure relief valve: installed internally to protect the pump
• Shaft seals: two different shaft seals available depending on pumped liquid temperature
• Rotor leads: two rotor leads available depending on required performance
• Fluid viscosity: L range 1.4 - 800 cSt; H range 1.4 - 3500 cSt
• Fluid temperature range: -20 to +155°C (-4 to +311°F)
• Max RPM: 3600
