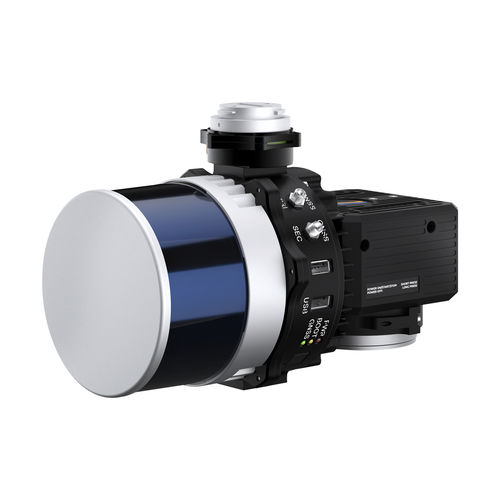

Mapping LIDAR laser RESEPI Hesai XT-32

for scannersmeasurementfor drones

RESEPI (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accu- racy dual-antenna GNSS receiver, integrated with a Linux-based processing core and datalogging software. The platform also provides a WiFi interface, optional imaging module and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web inter- face. RESEPI HESAI XT-32 Compact and light-weight, the RESEPI XT-32 featuring a Hesai LiDAR scanner, is all-around a very attractive system, offering the benefits of best-in-class data accuracy, good detection range, high point density, and versatility. APPLICATIONS The RESEPI XT-32 was strategically designed for multiple application bases. RESEPI XT-32 offers mounting options for: mobile vehicles, DJI supported drones (DJI M300, M600 Pro), custom drones, handheld platforms, vehicles, the Freefly Alta-X and many more. Because of this diverse mounting portfolio, the RESEPI can be used for many services including: utilities mapping (powerlines), construction volumetrics, site surveying, precision agriculture, forestry, mining operations, and much more. SYSTEM System Vertical Accuracy (5m/s @ 50m): ±3cm Weight: 1.7kg (with camera) Weight: 1.3kg (without camera) Dimensions: 20.8x17x14.2 (cm) Max Flight Time (DJI M300): 33 Minutes External Storage: 256GB USB Included
