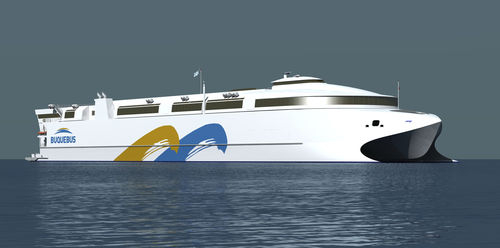

Ro-Pax car ferry INCAT HULL 096
catamaran

Ro-Pax car ferry
Ro-Pax car ferry
Add to favorites
Compare this product


Characteristics

Type
Ro-Pax
Number of hulls
catamaran
Length

129.68 m (425'05")

DWT

600 t (661 us ton)

Width

32.4 m (106'03")

Draft

2.5 m (8'02")

Speed

37.5 kt

Passenger capacity

2,100 unit

Description

INCAT HULL 096: VESSEL TYPE: 130m WPC OPERATOR: Buquebus REGION: SOUTH AMERICA Construction Design - Two slender, aluminium hulls connected by a bridging section with centre bow structure at forward end. Each hull is divided into eleven vented, watertight compartments divided by transverse bulkheads. Three compartments in each hull are prepared as fuel oil tanks with additional strengthening on each of the end bulkheads and intermediate tank tops. Air Conditioning Reverse cycle heat pump units throughout capable of maintaining between 20-22 deg C and 50% RH with a full passenger load and ambient temperature of between 0 deg C and 35 deg C and 60 % RH. Evacuation Six Marine Evacuation Stations (MES), three port and three starboard, each MES capable of serving a total of up to 350 persons. A total of nineteen, 128-person open top reversible liferafts are fitted. 2 x SOLAS semi-rigid inflatable dinghies with motor and approved launch / recovery method
