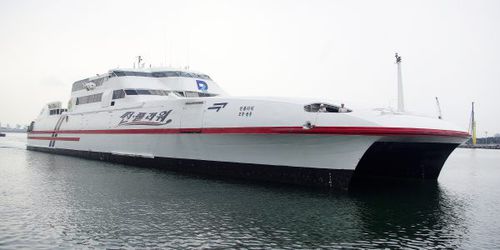

High-speed passenger ferry SUN FLOWER
catamaran

high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
high-speed passenger ferry
Add to favorites
Compare this product


Characteristics

Other characteristics
high-speed
Number of hulls
catamaran
Length

78.71 m (258'02")

DWT

174,000 kg (383,604 lb)

Passenger capacity

785 unit

Description

General Particulars Builder Incat Tasmania Pty Ltd Class Society Det Norske Veritas (Car Ferry A) Length overall 78.71m Length waterline 72.29m Beam Overall 19.0m Beam of Hulls 5.00m Draft 2.16m Deadweight 174.0 tonnes Speed Maximum Speed (@100% mcr) Light ship 52.2 Knots Laden 49.7 Knots Capacities Fresh water 2000 litres Fuel 35000 litres Lube oil 4 X 200 litres Sewage 2000 litres Loading Capability Total persons 785 Crew 20 Vehicles 32 cars Axle loads 2.0t max Ramp type Stb side access, hinged shore ramp, 3.1m clear width. Ramp loads 2.0t max Ramp max wharf sill height 2.41 below loaded w’L (ramp level) Ramp min wharf sill height 2.8 above loaded WL (ramp 10 deg down) Access clear opening stern door side door - 2.55m high x 3.5m Vehicle deck ht from loaded WL 3.34m Vehicle deck ht from lightship WL 3.29m Max vehicle deck beam Between portals - 17.78m Pax deck height clearance 2.25m Main vehicle deck (no mezz) 2.7m Forward ramps 1.8m
