Outboard motor steering MF175-WTS

hydraulic

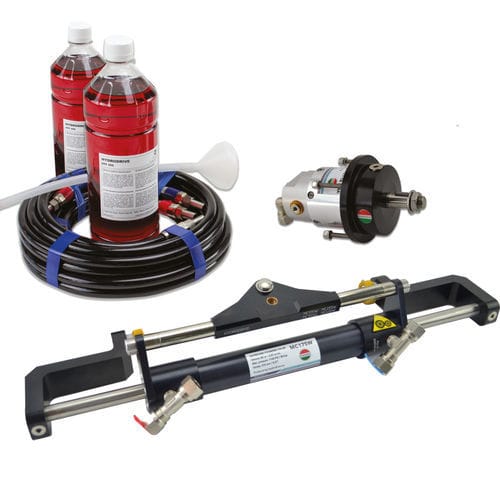

Steering System kit up to 175 Hp with slider cylinder. Steering System, compact horns mount for engines up to 175 Hp. Hydraulic pump comes with Anti-Feedback valve and Automatic Pilot connection port. New easy mounting system - Cylinder with two position engine plate so You can find the best position for the engine bracket Hydraulic pump: TL-16 MRA, 16 cc pump., 5,4 turns Hydraulic cylinder: MC175WTS, 86 cc volume, stroke 208 mm 6+6 m (20') high pressure twin hose set with fittings, 2x1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) Output force: 290 kgf. (640 lbf) Torque:60 Kgm (434 lbf-ft) Max speed: 55 kts Turns: 5,4 Pump made by hardened , hot pressed aluminum, Adonized and painted pump house, manufactured by precision CNC Cylinder made from cold drown, hardened adonized and painted aluminium Universal fittings Easy installation process
