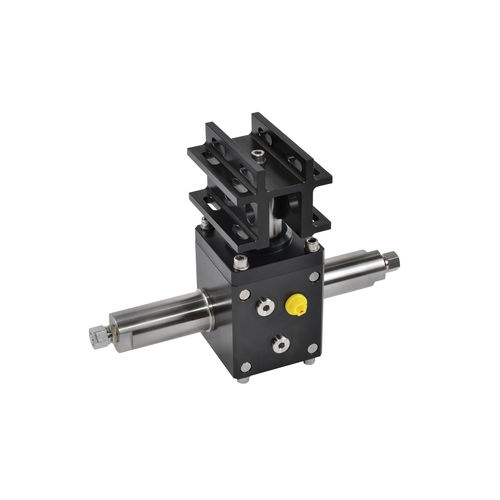

ROV rotary actuator HLK-2200

The HLK-2200 hydraulic rotary actuator is a rack and pinion design developed for general applications where reliability and durability are important and where a small amount of lash is tolerable. The HLK-2200 is a derivative of the HLK-2150 pan & tilt unit (minus the tilt) and was developed for applications requiring a rotary function only. The cylinder tubes are made of corrosion resistant 316 stainless steel while the body and bracket are manufactured of 6082 aluminium with a 50 micron hard anodized surface. The rotate hydraulic connections are ported into the end of the actuator tubes and are available in 1/8” BSPP in accordance with ISO 1179 and 7/16” SAE in accordance with SAE J1926-1. Features • - Porting available in 1/8” BSPP or 7/16” SAE in accordance with ISO 1179 & SAE J1926-1 respectively • - Constructed from corrosion resistant materials • - Compact & lightweight @ only 2.6kg (5.7lb) in water • - Bracket can accommodate cameras, lights or other subsea sensor devices • - Rotational travel of 360 degrees
