ROV hydraulic power unit HLK-91000

electrically-powered

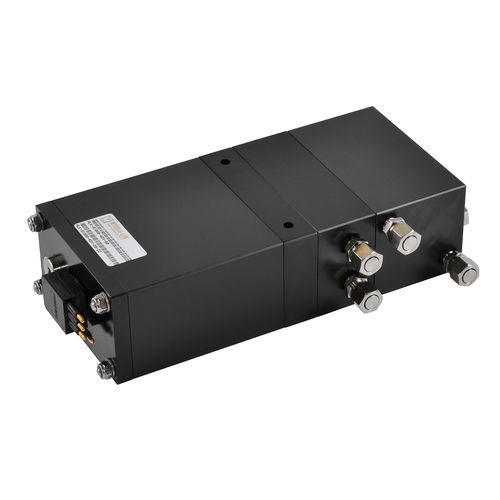

The HLK-91000 hydraulic power unit is a low profile, compact unit, incorporating a direct acting pressure relief valve. It is driven by a pair of 150W, 48Vdc brushed DC motors coupled to a common drive shaft with a high-pressure shaft seal to a gear pump. It is commonly used to power compact hydraulic manipulators on manipulator skids such as the Mini-Gauntlet skid used on the Falcon electric observation class ROV or can be used for other activities such as low pressure accumulator charging or as a low pressure, low flow hydraulic supply for dedicated functions on submersible systems. Features • - Compact and lightweight at only 2.4kgs (9.71b) in water • - Constructed from corrosion resistant materials • - Manifold contains adjustable direct acting relief valve
