Lifting platform

swimarticulatedfor boat

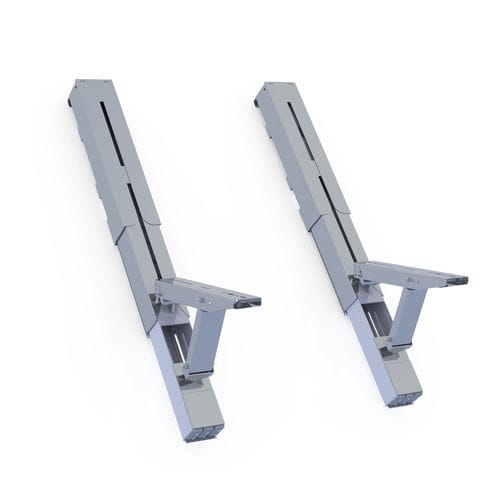

A hydraulic linear platform for yachts and vessels is a specialized system that uses hydraulic power to move a platform in a straight (linear) path, typically up and down or out and back. These platforms are integrated into the structure of a yacht or boat and are commonly used for a variety of purposes, such as launching and retrieving tenders (small boats), personal watercraft, or providing an extendable swim platform for easier access to the water. The system operates via hydraulic cylinders and actuators, which are powered by an onboard hydraulic pump and controlled electronically or with a remote. The movement is smooth, powerful, and precise, allowing the platform to handle heavy loads and operate reliably even in marine environments. STANDARD FEATURES Frame and cylinders in AISI 316L stainless steel Hydraulic pumps up to 200 Bar Mechanical safety lock 1200/2200w - 12/24V Hydraulic unit with hand pump included Wall-mounted control panel Installation angle: from:0° to: 45° We produce different linear platform models, based on the type of boat and load capacity
