Rig-mounted underwater core drill HCD25-100

hand-heldhydraulic

Product description

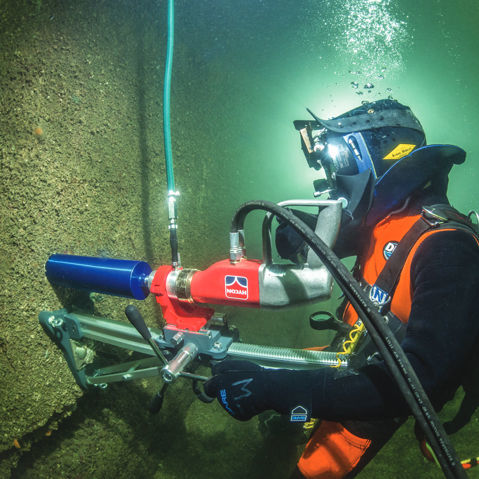

The HCD25-100 underwater compact core drill is a handheld hydraulic tool for submerged environments, delivering high torque and precise drilling for core sampling and through-drilling in various materials. Designed for easy handling in confined underwater sites, it can be mounted on standard drill rigs via a 60 mm flange for more demanding operations. The built-in hydraulic torque limiter ensures maximum torque while preventing kickback if the core bit jams.

Key features

• Handheld underwater hydraulic core drill suitable for professional marine and offshore applications
• Compact, lightweight design for improved maneuverability (7.6 kg)
• Compatible with standard drill rigs via 60 mm flange
• Built-in hydraulic torque limiter prevents kickback if the core bit jams
• Corebit diameter range Ø 25-100 mm, suitable for sampling and through-drilling

Technical data

• Item no.: 3030150-02
• Weight: 7.6 kg
• Corebit diameter Ø: 25-100 mm
• Max rotation speed: 1500 rpm
• Oil flow: 20 LPM
• Working pressure: 100 bar
• Max pressure: 172 bar
• Sound power level: 84 dB LWa
• Vibration level (3 axis): < 2.5 m/s2
