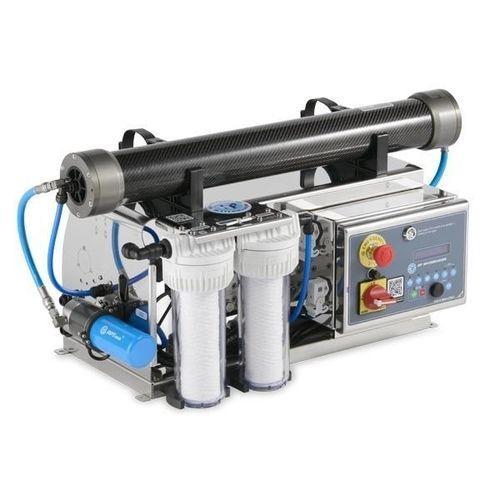

Yacht watermaker HP SCA series

for boatreverse osmosis220-240 V

Overview
HP SCA automatic reverse osmosis watermaker for yachts and pleasure craft. Compact marine desalination system designed for continuous fresh water supply aboard, with models covering small to high-capacity requirements.

Product summary
The HP SCA Series delivers fresh water production up to 440 L/h using up to four 31530/31540 membranes in parallel. The RP TRONIC® variant provides automatic pressure regulation and a remote control panel. The booster pump is supplied separately but included in the system price. MODBUS is standard for native interfacing with BiBi® and Part-NET Interface.

Available power supplies

• Single-phase: 220 VAC/60 Hz – 230 VAC/50 Hz – 230 VAC/60 Hz
• Three-phase: 380 VAC/50 Hz – 440 VAC/60 Hz

Optional accessories

• RP TRONIC® upgrade (automatic pressure regulation) — +3 years warranty
• Part-NET Interface (compatible with Garmin, Raymarine, Furuno, Navico)
• BiBi® internet remote control system — +1 year warranty
• Automatic Membranes Conserving System (AMCS)
• SEA 0 SPOT — integrated shore water treatment system

Technical data table (models left to right: HP SCA 100-1 | 120-1 | 160-1 | 220-2 | 260-2 | 330-3 | 440-4)
FLOW RATE (Lt/h): 100 | 120 | 160 | 220 | 260 | 330 | 440
NOMINAL FLOW RATE (Lt/h): 120 | 135 | 175 | 300 | 332 | 440 | 560
DAILY FLOW RATE (Lt/day): 2400 | 2880 | 3840 | 5280 | 6420 | 7920 | 10560
DAILY NOMINAL FLOW RATE (Lt/day): 2880 | 3840 | 3984 | 7200 | 7968 | 10080 | 13440
MEMBRANES (number-type): 1-31530 | 1-31530 | 1-31540 | 2-31530 | 2-31540 | 3-31540 | 4-31540
TOTAL WEIGHT (Kg): 55 | 62 | 65 | 69 | 72 | 89 | 94
DIMENSIONS L mm: 842 | 842 | 1100 | 842 | 1100 | 1100 | 1100
DIMENSIONS A mm: 420 | 420 | 420 | 420 | 420 | 420 | 420
DIMENSIONS P mm: 456 | 456 | 456 | 456 | 456 | 456 | 456
INSTALLED POWER (kW): 1 | 2,2 | 2,2 | 2,2 | 2,2 | 3 | 3

Notes
Flow rates calculated for sea water: 35,000 ppm TDS, 25°C at 60 bar. Price increase of 20% applies for 60 Hz and 230 V three-phase models.

Technical specifications

• Series name: HP SCA series
• Maximum fresh water production: up to 440 L/h (HP SCA 440-4)
• Membrane configuration: up to four 31540 membranes in parallel (model dependent)
• Model range (examples): HP SCA 100-1, 120-1, 160-1, 220-2, 260-2, 330-3, 440-4
• Nominal flow rates (per model): 120 / 135 / 175 / 300 / 332 / 440 / 560 Lt/h
• Daily nominal flow rates: up to 13,440 Lt/day (model dependent)
• Total weight per model: 55–94 Kg
• Standard installed power per model: 1 kW up to 3 kW (model dependent)
• Available power supplies: single-phase 220 VAC/60 Hz, 230 VAC/50 Hz, 230 VAC/60 Hz; three-phase 380 VAC/50 Hz, 440 VAC/60 Hz
• Control and interfacing: RP TRONIC® optional (automatic pressure regulation + remote control panel); MODBUS standard for BiBi® and Part-NET Interface
• Optional systems: Part-NET interface, BiBi® remote control, AMCS, SEA 0 SPOT shore water treatment
• Booster pump: supplied separately (included in system price)
• Flow rate calculation conditions: sea water 35,000 ppm TDS, 25°C, at 60 bar
