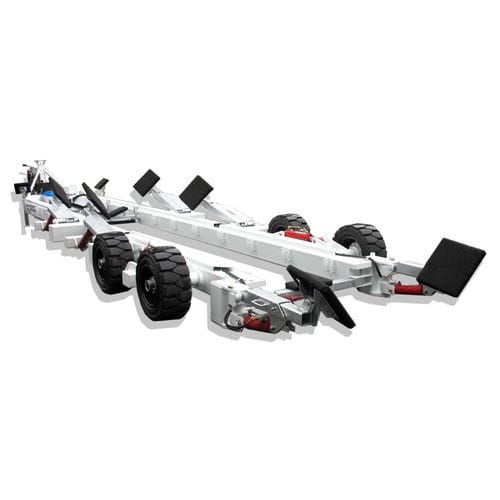

Handling trailer HPT series
for shipyardhydraulicelectric

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyard
Other characteristics
hydraulic, electric
Payload

Max.: 60,000 lb (27,215.54 kg)

Min.: 20,000 lb (9,071.85 kg)

Overall length

35'00" , 38'00" , 41'00" , 50'00" (10.7 m)

Overall width

9'00" , 9'04" , 10'00" (2.7 m)

Description

The open-center frame on our yard trailers, with plenty of width between main rails to place keel blocking, keeps its alignment perfectly when backing under or pulling out from a blocked boat. Our innovative outboard hydraulic walking beam suspension allows you to raise and lower the frame to the ground, each side independently. Low profile, high flotation industrial yard tires, standard on all our yard trailers, give you enormous carrying capacity and are great on soft or uneven ground. The HPTY series is designed and built with extendable aft-facing pivoting rear hydraulic arms. The beauty of the pivoting arms is that they can be moved outward or inward and pinned in any of 5 positions - great for boats with twin shafts or narrow hulls. The lift-and-pin-in forward beam (reversible, movable, adjustable) and the ratchet-adjustable swing-out rear beam provide correct keel support for every boat. HOSTAR Model HPT5000Y Hydraulic Boat Trailer for yard use, configured with the following equipment and/or specifications: • To handle power boats and shoal draft sailboats to 45 feet • Overall trailer length of 41 feet • Overall trailer width of 9 feet 4 inches (wider or narrower as desired) • Capacity of 50,000 lbs. in the yard • 10" x 10" x 3/8" steel square tube main frame • Hydraulics: * Two pivoting rear hydraulic arms with extendable pads * Two forward hydraulic arms, extendable * Front cylinder for fore and aft leveling/lifting * Hydraulic raising and lowering of frame (each side) * 12VDC electric hydraulic power unit * Pilot operated double-locking valves on all cylinders • Outboard hydraulic walking beam suspension
