road trailer / for boats / hydraulic / electric
HPT 3100

Add to MyNauticExpo favorites
Compare this product
road trailer / for boats / hydraulic / electric road trailer / for boats / hydraulic / electric - HPT 3100
{{requestButtons}}

Characteristics

  • Use:

    road

  • Applications:

    for boats

  • Other characteristics:

    hydraulic, electric

  • Payload:

    13,000 lb, 17,000 lb (5,896.7 kg)

Description

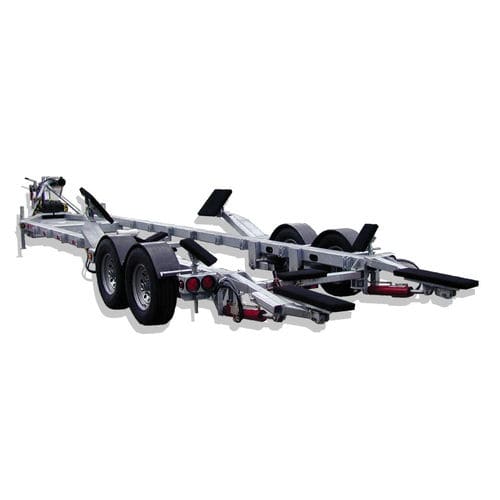

HOSTAR Model HPT 3100 Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle powerboats and shoal draft sailboats to 33 feet
• Overall trailer length of 32 feet
• Overall trailer width of 8 feet 6 inches
• Capacity of 13,000 lbs. over the road, 17,000 lbs. in the yard
• 6" x 6" steel square tube main frame
• Hydraulics:
* Two rear hydraulic arms with offset reversible pads
* Front hydraulic cylinder for fore/aft lifting/leveling
* Manual hydraulic control valves
* 12VDC electric hydraulic power unit
* Pilot-operated double-locking valves on all cylinders
• Rocking beam suspension
• Adjustable, movable and reversible forward cross beam
• Two-position ratchet-adjustable swing-out rear cross beam
• Four 900 x 14.5, 12 ply, Load Range F tires
• Electric brakes on all wheels with D.O.T. wiring and breakaway switch
• Flexible fenders
• Two movable screw pad stabilizers with sockets and T-pins
• Stainless steel T-pins and hardware
• Deluxe submersible lighting system
• Hydraulically operated pintle draw bar with safety chains
• Expanded metal basket at trailer front
• Two parking stands
