Outboard engine BF40 - 50gasolineboatingrecreational
Add to favorites
Compare this product
Characteristics
- Type
- outboard
- Power source
- gasoline
- Market
- boating, for boat, recreational
- Engine type
- in-line
- Cooling system
- water-cooled
- Ignition
- electric start
- Other characteristics
- outboard engine cycle
- Power
36.8 kW
(50 hp)- Displacement
808 cm³
(27 US fl oz)- Number of cylinders
3 unit
- Engine speed
Min.: 5,500 rpm
(34,558 rad.min-1)Max.: 6,000 rpm
(37,699 rad.min-1)- Bore
70 mm
(2.8 in)- Stroke
70 mm
(2.8 in)- Length
694 mm
(27 in)- Width
372 mm
(15 in)- Height
1,258 mm
(50 in)- Weight
98 kg
(216 lb)
Description
Overview

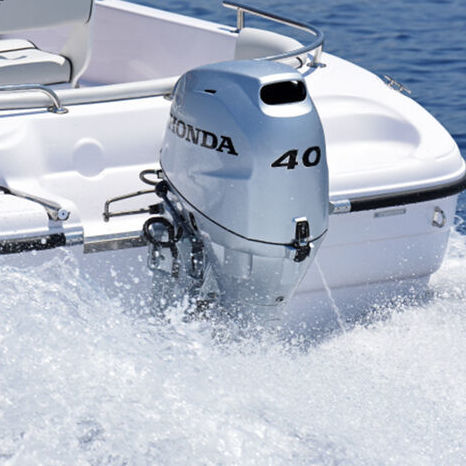

The BF40 and BF50 are lightweight, compact 3-cylinder 808 cc outboard engines delivering high torque and features suited to a variety of boat types.
Key points
Technologies
Main specifications
Cylinders: 3
Displacement: 808 cc
Valves: 6
Engine type: OHC
Features / technical specifications
The BF40 and BF50 are lightweight, compact 3-cylinder 808 cc outboard engines delivering high torque and features suited to a variety of boat types.
Key points
- Perfect trim: power tilt and trim optimize fuel economy and performance.
- Improved fuel economy: reliable electronic fuel injection optimized by the ECOmo system.
- Top performance: increased low-end torque (BLAST™) combined with ECOmo for strong acceleration and excellent fuel efficiency.
- High-output alternator delivering 22 amps to maintain batteries and power onboard electronics.
- Smooth, quiet operation with precise control, ideal for fishing and trolling.
Technologies
- Honda BLAST™: ignition timing that boosts low-end torque for quicker planing and instant acceleration.
- ECOmo: lean-burn control that optimizes fuel efficiency by adjusting the air/fuel ratio according to load and speed (PGM-FI can lean the mixture by up to 20% at cruising).
- Plug-and-play electronics: NMEA2000® compatibility for engine RPM, temperature, fuel consumption and other parameters on compatible multifunction displays.
- Protection and safety: overheat warning, rev limiter, freshwater flush port for easy maintenance and engine reliability.
Main specifications
Cylinders: 3
Displacement: 808 cc
Valves: 6
Engine type: OHC
Features / technical specifications
- Architecture: inline 3-cylinder, lightweight and compact engine.
- Displacement: 808 cc.
- Valves: 6.
- Type: OHC (Overhead Cam).
- High low-end torque for excellent acceleration.
- BLAST™ technology to aid planing and improve initial acceleration.
- ECOmo system and PGM-FI electronic injection to optimize fuel consumption (mixture can be leaned by up to 20% at cruising).
- High-output alternator: 22 amps for battery charging and powering onboard equipment.
- NMEA2000® compatibility for integration with onboard electronics (multifunction displays, sonar, navigation, etc.).
- Integrated protection functions: overheat alert, rev limiter.
- Freshwater flush port for maintenance and corrosion protection.
