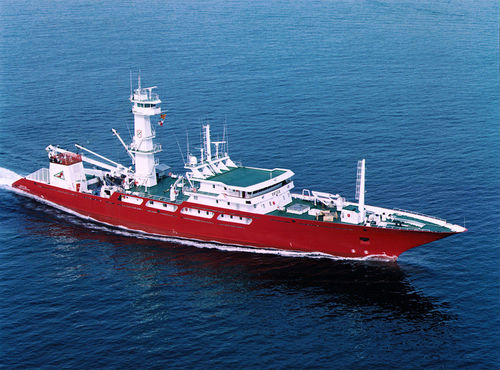

tuna seiner commercial fishing vessel
ARTZA

{{requestButtons}}

Characteristics

  • Type:

    tuna seiner

  • Length:

    112 m (367'05")

  • DWT:

    3,195,000 kg (7,043,769 lb)

Description

Main particulars:Length Overall: 112.00 m approx.
Length between Perpendiculars: 94.00 m
Moulded Beam: 16.50 m
Depth to Main Deck: 7.50 m
Depth to Upper Deck: 10.30 m
Mean Moulded Draught: 6.90 m
Summer Draught: 7.00 m
Deadweight: 3195 T
Trials Speed: 17.7 knots approx.
Crew: 29 people
Classification:Bureau Veritas: I Hull Mach Fishing vessel Unrestricted navigation
REF-CARGO QUICK FREEZE
Propulsion & Manoeuvring Equipment:Main Engine: 6.000 BHP at 500 rpm
Generating Sets: 4 x 662 kW (900 BHP) at 1500 rpm
Bow Thrusters: 2 x 500 BHP (368 kW)
Emergency genset: 215 kW at 1500 rpm
Cargo Capacity:Freezing Tanks Capacity: 2948.9 m³ approx.
Daily Freezing Capacity: 150 T
Tanks Capacity:Gas-oil Capacity: 900 m³ approx.
Lubricating Oil Capacity: 56.9 m³ approx.
Fresh Water Capacity: 59.5 m³ approx.
Ballast Capacity: 119 m³ approx
