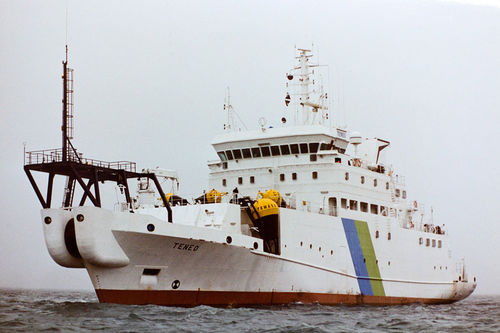

cable special vessel / for pipe laying
TENEO

{{requestButtons}}

Characteristics

  • Type:

    cable

  • Other characteristics:

    for pipe laying

  • Length:

    81 m (265'08")

  • DWT:

    1,550,000 kg (3,417,165 lb)

Description

Main particulars:Length Overall: 81.00 m
Length between Perpendiculars: 7.50 m
Moulded Breadth: 14.00 m
Depth to Cable Deck: 6.80 m
Depth to Lower Deck: 4.00 m
Mean Moulded Draught: 4.65 m
Maximum Draught: 5.00 m
Deadweight at max. Draught: 7.20 m
Deadweight at Draft 7.00 m: 1550 T
Service Speed: 14.5 knots
Crew: 53 people
Classification:Bureau Veritas: I3/3 E Deep Sea, Especial Service/Cable Laying Ship,
AUT, PORT
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 1250 kW at 800 rpm
Generating Sets: 4 x 1190 kW at 750 rpm
Emergency Genset: 1 x 180 kW at 1500 rpm
1 x FP Main Propeller, 4 blades, 3100 mm diameter
1 x 368 kW Bow Azimuthing Jet Thruster
1 x 300 kW CP Bow Tunnel Thruster
1 x 300 kW CP Stern Tunnel Thruster
DP1 Dynamic Positioning System ADP 701Main Engines: 2 x 1250 kW at 800 rpm
Generating Sets: 4 x 1190 kW at 750 rpm
Emergency Genset: 1 x 180 kW at 1500 rpm
1 x FP Main Propeller, 4 blades, 3100 mm diameter
1 x 368 kW Bow Azimuthing Jet Thruster
1 x 300 kW CP Bow Tunnel Thruster
1 x 300 kW CP Stern Tunnel Thruster
DP1 Dynamic Positioning System ADP 701
Tanks Capacity:Fuel Oil Capacity: 240 m³
Lub. Oil Capacity: 13 m³
Fresh Water Capacity: 130 m³
Ballast Water Capacity: 400 m³
