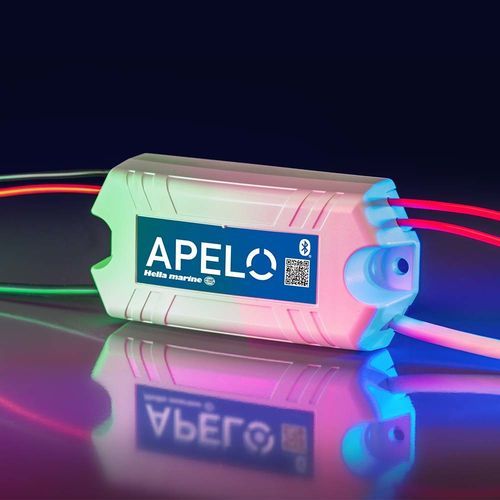

LED light lighting control module Apelo

for shipfor yachts

Control, group and create personalised dynamic RGB/W lighting experiences with the Apelo Light Controller. Configure compatible Apelo RGB and RGB/W lamps or lights via the Apelo Light Controller app and/or direct multi-pole switching. Bluetooth Low Energy (BLE) Mesh enables wireless integration and over-the-air instruction relay between paired devices.

Key features

• Personalised dynamic RGB/W lighting control for Apelo Ecosystem products.
• Control via iOS/Android app and direct multi-pole switch.
• Bluetooth Low Energy (BLE) Mesh communication—no wiring required for controller networking.
• Group and synchronise lighting effects across multiple units.
• Supports app-based and direct switch operation (one switch can control multiple devices).
• Low standby power consumption; marine-ready, fully sealed (IP67).

Operation & integration

• Seamless switching between app control and direct switch control.
• Mesh networking allows controllers to relay instructions over-the-air once paired.
• Compatible with Apelo RGB Step lamps, Apelo EuroLED 75 RGB/W downlights, Apelo Underwater Lights and universal RGB products (e.g. rope lighting).

Badges & compliance

• Degree of protection: IP67 (completely sealed) — suitable for marine environments.
• Multivolt™ 12 / 24V DC nominal.
• Approvals: FCC, CE, UKCA, Bluetooth Consortium, RCM.
• Manufacturer warranty and support indications.

Notes

• Observe power handling and channel limits to avoid overloading (see technical specifications).
• Designed for marine installations — use tinned marine cable for reliable connections.

Technical specifications

• Operating Voltage: Multivolt™ 12 / 24V DC nominal
• Power Handling: 150W (13A @ 12V DC / 6.5A @ 24V DC) (3A per channel)
• Power Consumption (standby): 1W
• Connectivity: iOS / Android App over Bluetooth; direct switch control; 13A max high side, 3A max low side
• Communication: Bluetooth Low Energy (BLE) Mesh
• Degree of Protection: IP67 — completely sealed
• Cable: 140mm tinned marine cable
• Approvals: FCC, CE, UKCA, Bluetooth Consortium, RCM
• Manufacturer reference (SKU): 5XA 285 814-001
