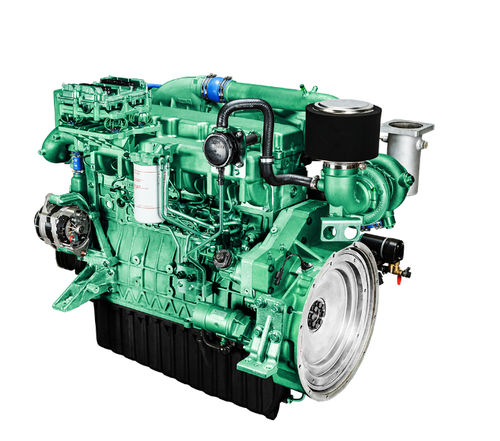

Propulsion engine 4L086Cinboarddieselcommercial
Add to favorites
Compare this product
Characteristics
- Type
- inboard, propulsion
- Power source
- diesel
- Market
- commercial
- Technology
- turbocharged, common rail, SCR
- Engine type
- in-line
- Pollution control standard
- Tier 3, IMO 3
- Power
320 ch, 360 ch, 380 ch
(320 hp, 360 hp, 380 hp)- Displacement
8 l
(2 gal)- Number of cylinders
6 unit
- Engine speed
1,800 rpm, 2,100 rpm, 2,300 rpm
(11,310 rad.min-1, 13,195 rad.min-1, 14,451 rad.min-1)- Bore
108 mm
(4.3 in)- Stroke
139 mm
(5.5 in)- Length
1,394 mm
(55 in)- Width
882 mm
(35 in)- Height
1,220 mm
(48 in)- Weight
920 kg
(2,028 lb)
Description
It is a 8-liter turbo-intercooler in-line 6-cylinder electronic engine with maximum output of 380 PS that meets IMO Tier II/III and EPA Tier 3 regulations.
High performance solution
- Advanced Fuel Injection System with common Rail
- Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
- SCR (Selective Catalytic Reduction) technology is used for Tier 3
- Increased durability of key components
- Decrease smoke leve
Convenience / Maintainability / Stability
- Application of Auto Tensioner
- Application of Turning Device
- Application of Safety Guards
- Application of Electrical oil drain pump
- Application of CCV type for improving engine room cleanliness
Economical solution
- Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
- Increased oil &filter replacement cycle (250hr → 500hr)
