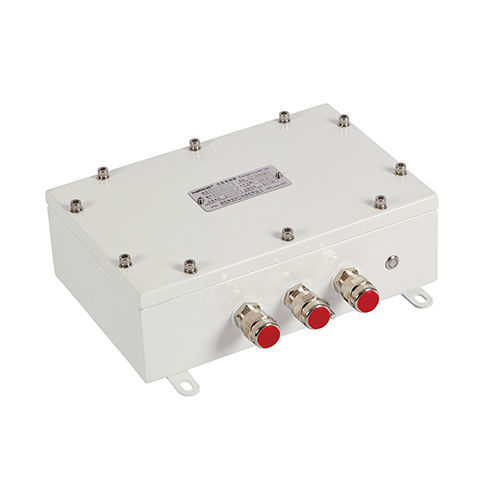

Boat junction box CDY

for ships

Scope of application: Suitable for non-explosion-proof places requiring timely operation after power off, providing emergency power supply for LED lamps with type A (continuous) and type B (non-continuous) using dual firewire control without affecting the normal switching function of lamps. Includes test button function and supports different installation methods. Technical Standard: - Model: CDY-40-A / CDY-40-B / CDY-80-A / CDY-80-B - Rated voltage: AC220-240V 50/60Hz - Emergency output voltage: DC220-300V - Emergency power: Max. 25W / Max. 76W - Emergency time: 60 min - Emergency method: persistent / non-persistent - Protection class: IP66 - Cable outside diameter: Φ10-Φ14 - Installation method: seat-mounted type - Ambient temperature: -25℃ to +45℃ - Material: stainless steel 316L - Scope of application: Non-explosion-proof areas, emergency power for LED lamps - Models: CDY-40-A, CDY-40-B, CDY-80-A, CDY-80-B - Rated voltage: AC220-240V 50/60Hz - Emergency output voltage: DC220-300V - Emergency power: Max. 25W / Max. 76W - Emergency time: 60 minutes - Emergency method: persistent / non-persistent - Protection class: IP66 - Cable diameter: Φ10-Φ14 mm - Installation: seat-mounted - Ambient temperature: -25℃ to +45℃ - Material: stainless steel 316L
