Deck floodlight TG30-L-220/TG30-L-440/TG30-L-600
for shipsfor boatfor harbor

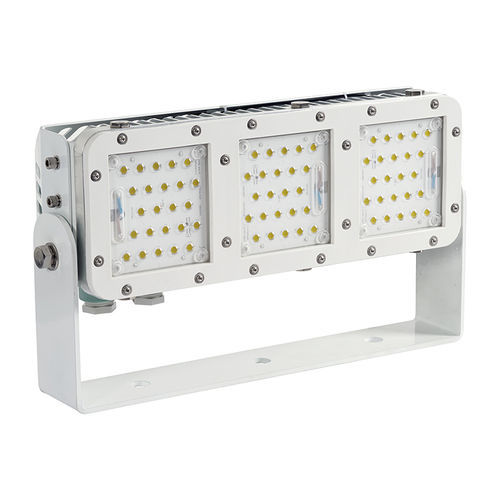

Deck floodlight - TG30-L-220/TG30-L-440/TG30-L-600 - Haixing Maritime Electric Group - for ships / for boat / for harbor
Deck floodlight - TG30-L-220/TG30-L-440/TG30-L-600 - Haixing Maritime Electric Group - for ships / for boat / for harbor
Deck floodlight - TG30-L-220/TG30-L-440/TG30-L-600 - Haixing Maritime Electric Group - for ships / for boat / for harbor - image - 2
Deck floodlight - TG30-L-220/TG30-L-440/TG30-L-600 - Haixing Maritime Electric Group - for ships / for boat / for harbor - image - 3
Add to favorites
Compare this product
Go to the Haixing Maritime Electric Group website for more information

Characteristics

Type
for decks
Application domain
for ships, for boat, for harbor
Light source
LED
Material
stainless steel
Protection level
IP66, IP67
Other characteristics
adjustable
Luminous flux

Max.: 83,000 lm

Min.: 31,000 lm

Color temperature

Max.: 5,700 K

Min.: 3,000 K

Power

Max.: 600 W
(1 hp)

Min.: 220 W
(0 hp)

Power supply

Max.: 240 V

Min.: 100 V

Weight

Max.: 21 kg
(46.3 lb)

Min.: 9 kg
(19.8 lb)

Description

Scope of Application: It is suitable for the lighting for all kinds of marine deck exterior lighting, crane operation lighting, port dock working lighting and other places. - Model: Floodlight TG30-L-220/TG30-L-440/TG30-L-600 - Rated voltage: AC100-240V 50/60Hz - Power: 220W, 440W, 600W - Power factor: ≥0.9 - Light source: LED - Light source color: white - Luminous flux: 31000lm, 64000lm, 83000lm - Color rendering index: Ra≥70 - Color temperature: 5700K (Optional 3000K, 4000K, 5000K) - Beam angle: 90° (Optional 12°, 25°, 40°, 60°, 120°) - Adjustment method: Manual adjustment up 90°, down 45° - Protection class: IP66/IP67 - Cable outside diameter: Φ10-Φ14 - Installation method: base-mounted type - Ambient temperature: -30℃ to +55℃ - Material: lamp body is stainless steel, lampshade is toughened glass - Weight: 9kg, 15kg, 21kg
