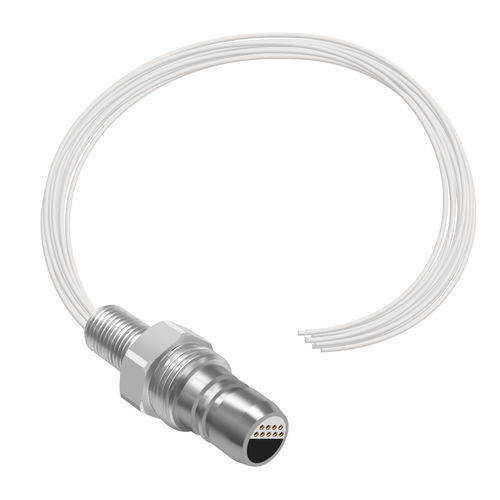

Subsea connector Metal Shell MSSL (2,4,6,8,12,16 and 18 Contacts)electricEthernetfor aquaculture
Add to favorites
Compare this product
Characteristics
- Type
- electric, Ethernet
- Application domain
- subsea, for aquaculture, oceanographic research
- Contact number
- 4 contacts, 8 contacts, 2 contacts, 6 contacts, 12 contacts, 16 contacts, 18 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 2, 4, 6, 8, 12, 16, 18
Contact Specification: 0.2-2mm2
2-6 Contacts: 1-2mm2 per contact
Electrical specification: 500V@5-10Amp
8-16 Contacts: 0.5-1mm2 per contact
Electrical specification: [email protected]
18 Contacts: 8 pairs Cat 5 Ethernet cable
Electrical specification: 300V@2-15Amp
Customization Available: 1000-2000V@2-30Amp
Insulation Material: Reinforced PPS
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
2-8 Contacts Inline Cable Color Code: 1 black, 2 white, 3 red, 4 green, 5 orange, 6 blue, 7 purple, 8 brown
12-18 Contacts Inline Cable Color Code: White (No. mark)
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking sleeve: stainless steel
Options include:
Application Fields:
Technical Specifications / Features:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 2, 4, 6, 8, 12, 16, 18
Contact Specification: 0.2-2mm2
2-6 Contacts: 1-2mm2 per contact
Electrical specification: 500V@5-10Amp
8-16 Contacts: 0.5-1mm2 per contact
Electrical specification: [email protected]
18 Contacts: 8 pairs Cat 5 Ethernet cable
Electrical specification: 300V@2-15Amp
Customization Available: 1000-2000V@2-30Amp
Insulation Material: Reinforced PPS
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
2-8 Contacts Inline Cable Color Code: 1 black, 2 white, 3 red, 4 green, 5 orange, 6 blue, 7 purple, 8 brown
12-18 Contacts Inline Cable Color Code: White (No. mark)
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking sleeve: stainless steel
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Specifications / Features:
- Contacts: 2, 4, 6, 8, 12, 16, 18
- Contact Specification: 0.2-2mm²
- 2-6 Contacts: 1-2mm² per contact, 500V@5-10Amp
- 8-16 Contacts: 0.5-1mm² per contact, [email protected]
- 18 Contacts: 8 pairs Cat 5 Ethernet cable, 300V@2-15Amp
- Customization: 1000-2000V@2-30Amp
- Insulation Material: Reinforced PPS
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking sleeve: stainless steel
