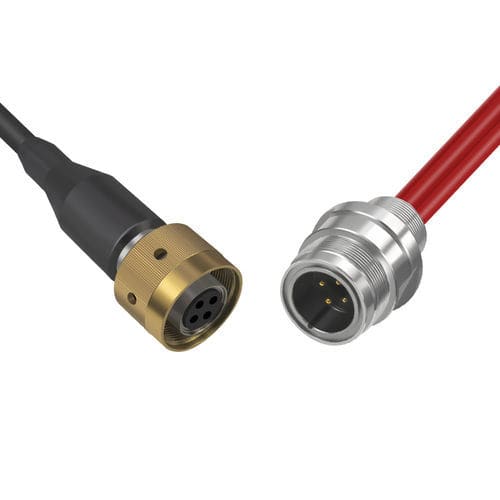

Subsea connector Metal Shell MSSM High Voltage (4 Contacts)electricfor aquacultureoceanographic research
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research
- Shape
- circular
- Contact number
- 4 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Material Specification:
Options include:
Application Fields:
Technical Specifications / Features:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
- Contacts: 4
- Inline Cable and BH Lead: 6 mm²/500V@20-40Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
Material Specification:
- Insulation Material: PEEK
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Specifications / Features:
- Number of contacts: 4
- Rated voltage: 500V
- Current: 20-40Amp
- Contact resistance: ＜0.01Ω
- Insulation resistance: ＞200MΩ
- Mating cycles: ＞500
- Temperature range: -4℃ to +60℃
- Depth rating: 6000m
- Insulation material: PEEK
- Connector body: Chloroprene rubber
- BH body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and washer: 304 stainless steel
- O-ring: Nitrile
