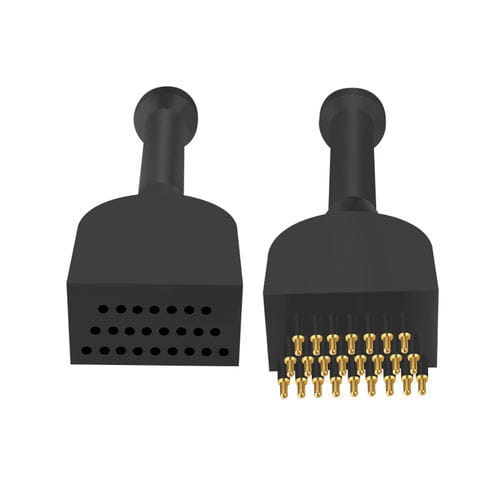

Subsea connector Low Profile (13 and 24 Contacts)electricfor aquacultureoceanographic research
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research
- Contact number
- 13 contacts, 24 contacts
- Other characteristics
- inline
Description
Product Description
Lanhe Low Profile 13/24 Contacts connectors deliver maximum density in minimal space. These ultra-slim solutions provide high-pin-count connectivity for advanced compact applications requiring reliable performance.
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
Contacts: 13, 24
Inline Cable and BH Lead: 1 mm²
Electrical Specification: 300V@3-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code: White, No. Mark
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
1. Cable length
2. Shell material: stainless steel, titanium
3. Thread length
Application Fields:
Technical Specifications / Features
Lanhe Low Profile 13/24 Contacts connectors deliver maximum density in minimal space. These ultra-slim solutions provide high-pin-count connectivity for advanced compact applications requiring reliable performance.
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
Contacts: 13, 24
Inline Cable and BH Lead: 1 mm²
Electrical Specification: 300V@3-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code: White, No. Mark
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
1. Cable length
2. Shell material: stainless steel, titanium
3. Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Specifications / Features
- Contacts: 13 or 24
- Inline Cable and BH Lead: 1 mm²
- Electrical: 300V@3-10Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating Cycles: ＞500
- Temperature Range: -4℃~+60℃
- Depth Rating: 6000m
- Inline Cable Color Code: White, No. Mark
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
