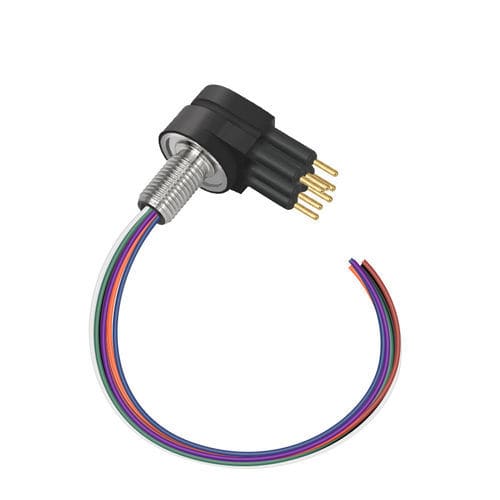

Subsea connector LPM Series (6,7 and 8 Contacts)electricfor aquaculturefor shipbuilding
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research, for shipbuilding
- Contact number
- 8 contacts, 6 contacts, 7 contacts
- Other characteristics
- inline
Description
Product Description
Lanhe LPM Series 6/7/8 Contacts connectors offer robust, high-density solutions for industrial applications. These compact yet durable connectors feature secure locking mechanisms and reliable performance in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 6, 7, 8
Inline Cable and BH Lead: 20AWG
Electrical Specification: 300V@3Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include
Application Fields
Characteristics / Technical Specifications
Lanhe LPM Series 6/7/8 Contacts connectors offer robust, high-density solutions for industrial applications. These compact yet durable connectors feature secure locking mechanisms and reliable performance in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 6, 7, 8
Inline Cable and BH Lead: 20AWG
Electrical Specification: 300V@3Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code
- 1. Black
- 2. White
- 3. Red
- 4. Green
- 5. Orange
- 6. Blue
- 7. White/Black(Purple)
- 8. Red/Black(Brown)
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include
- 1. Cable length
- 2. Shell material: stainless steel, titanium
- 3. Thread length
Application Fields
- 1. Oil & Gas Industry
- 2. Marine Renewable Energy
- 3. Mine Detection & Neutralization
- 4. Oceanographic Research & Exploration
- 5. Underwater Communication & Networking
- 6. Aquaculture & Underwater Farming
Characteristics / Technical Specifications
- Contacts: 6, 7, 8
- Inline Cable and BH Lead: 20AWG
- Electrical Specification: 300V@3Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
