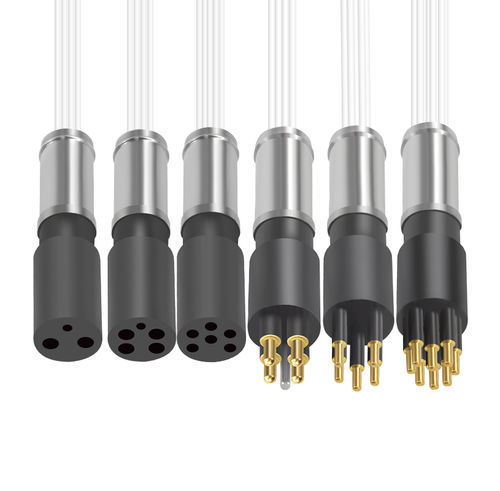

Subsea connector Oil Filled Micro (2,4,5,6 and 8 Contacts)

electricfor aquaculturefor shipbuilding

Product Description
Lanhe Oil-Filled Micro 2/4/5/6/8 Contacts connectors provide superior waterproof protection for harsh environments. These compact, oil-filled units ensure reliable signal/power transmission in deep-sea, industrial and outdoor applications.

Drawing Information

• Dimensions in mm
• Threads in inches
• 1 inch = 25.4mm

Connector Specification

• Contacts: 2, 3, 4, 5, 6, 8
• Inline Cable: 0.5mm², 1 mm²
• BH Lead: 0.5mm², 1 mm²
• Electrical Specification: 300V, 600V @ 3-10Amp
• Contact Resistance: <0.01Ω
• Insulation Resistance: >200MΩ
• Mating: >500 cycles
• Temperature Rating: -4℃~+60℃
• Depth Rating: 6000m

Inline Cable Color Code

• 1. Black
• 2. White
• 3. Red
• 4. Green
• 5. Orange
• 6. Blue
• 7. White/Black (Purple)
• 8. Red/Black (Brown)

Material Specification

• Connector Body: Chloroprene rubber
• BH Body: 316L stainless steel/titanium
• Contacts: Gold plated brass
• Nut and Washer: 304 stainless steel
• O-ring: Nitrile
• Locking Sleeve: POM
• Snap Ring: Stainless steel

Options include

• Cable length
• Shell material: stainless steel, titanium
• Thread length

Application Fields

• Oil & Gas Industry
• Marine Renewable Energy
• Mine Detection & Neutralization
• Oceanographic Research & Exploration
• Underwater Communication & Networking
• Aquaculture & Underwater Farming
• Marine Construction & Infrastructure

Technical Specifications / Features

• Number of contacts: 2, 3, 4, 5, 6, 8
• Voltage: 300V, 600V
• Current: 3-10A
• Contact resistance: <0.01Ω
• Insulation resistance: >200MΩ
• Mating cycles: >500
• Temperature range: -4℃ to +60℃
• Depth rating: 6000m
• Materials: Chloroprene rubber, 316L stainless steel/titanium, gold plated brass, 304 stainless steel, nitrile, POM
