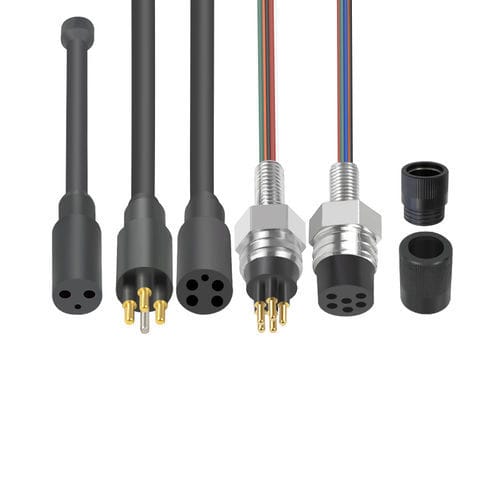

Underwater connector Small Circular Series (2-6 Contacts)electricfor aquaculturemarine
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- underwater, for aquaculture, for ROV, oceanographic research, oceanographic, for AUVs, for divers, for sailboats, marine
- Shape
- circular
- Contact number
- 4 contacts, 2 contacts, 6 contacts, 3 contacts, 5 contacts
- Other characteristics
- inline, bulkhead, dummy
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
Contacts: 2, 3, 4, 5, 6
Inline Cable and BH Lead:
2, 3, 4 Contacts: 0.5 mm², 200V@2Amp
5 Contacts: 0.3mm², 200V@1Amp
6 Contacts: 0.2mm², Ethernet cable, [email protected]
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
Cable OD:
2,3 and 4 contacts cable: 5mm
5,6 contacts cable: 6mm
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
Application Fields:
Technical Specifications / Features
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
Contacts: 2, 3, 4, 5, 6
Inline Cable and BH Lead:
2, 3, 4 Contacts: 0.5 mm², 200V@2Amp
5 Contacts: 0.3mm², 200V@1Amp
6 Contacts: 0.2mm², Ethernet cable, [email protected]
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
- 2,3,4,5 Contacts: 1. Black 2. White 3. Red 4. Green 5. Orange
- 6 Contacts: 1. Brown 2. Brown/White 3. Blue 4. Blue/White 5. Orange 6. Orange/White
Cable OD:
2,3 and 4 contacts cable: 5mm
5,6 contacts cable: 6mm
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Specifications / Features
- Contacts: 2, 3, 4, 5, 6
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating cycles: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Cable OD: 5mm (2,3,4 contacts), 6mm (5,6 contacts)
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
