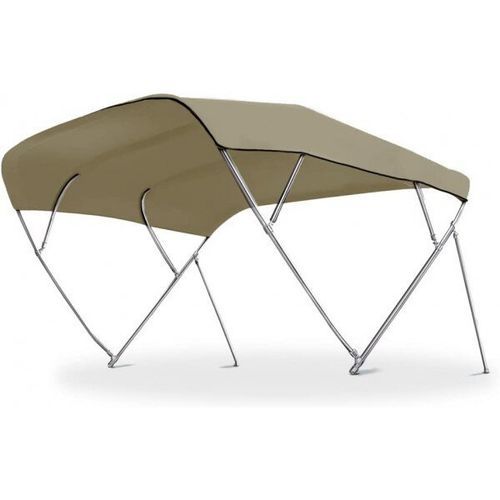

Boat Bimini top for pleasure boatscockpitstainless steel frame
Add to favorites
Compare this product
Characteristics
- Application domain
- for boat, for pleasure boats
- Function
- cockpit
- Structure
- stainless steel frame
- Material
- polyester
- Color
- gray, black, blue, beige, white
- Arches number
4 unit
- Tube diameter
22 mm
(1 in)- Length
240 cm
(94 in)- Width
Min.: 170 cm
(67 in)Max.: 240 cm
(94 in)- Height
140 cm
(55 in)
Description
Overview
Folding 4‑arch bimini constructed from AISI 316 stainless steel tubing Ø 22 mm. Available canopy colours: beige / white / grey / blue / black. Designed for recreational boats and semi‑cabin inflatables. Supplied with two anti‑wind props and protective bag.
Details
Durable folding 4‑arch bimini with two anti‑wind props and included protective cover. Quick and easy to install using snap fastenings; suitable for mounting on most cabin and semi‑cabin inflatables and small boats.
Technical specifications
Fabric: polyester 600 D, beige, high‑strength, UV resistant, breathable and water‑repellent. Frame: stainless steel AISI 316 tubing Ø 22 mm. Straps: polyester. Two stainless steel support spikes for bimini elevation. Fasteners and fittings made from marine‑grade AISI 316 stainless steel. Protective cover included; supplied with two props to keep the bimini raised.
Available sizes
Note
The selected width has a tolerance of ±15 cm.
Features / technical data
Folding 4‑arch bimini constructed from AISI 316 stainless steel tubing Ø 22 mm. Available canopy colours: beige / white / grey / blue / black. Designed for recreational boats and semi‑cabin inflatables. Supplied with two anti‑wind props and protective bag.
Details
Durable folding 4‑arch bimini with two anti‑wind props and included protective cover. Quick and easy to install using snap fastenings; suitable for mounting on most cabin and semi‑cabin inflatables and small boats.
Technical specifications
Fabric: polyester 600 D, beige, high‑strength, UV resistant, breathable and water‑repellent. Frame: stainless steel AISI 316 tubing Ø 22 mm. Straps: polyester. Two stainless steel support spikes for bimini elevation. Fasteners and fittings made from marine‑grade AISI 316 stainless steel. Protective cover included; supplied with two props to keep the bimini raised.
Available sizes
- Length: 240 cm
- Height: 140 cm
- Widths available: 170 cm, 190 cm, 200 cm, 220 cm, 240 cm
Note
The selected width has a tolerance of ±15 cm.
Features / technical data
- Fabric: Polyester 600 D, UV resistant, breathable, water‑repellent
- Frame: stainless steel AISI 316 tubing Ø 22 mm
- Straps: polyester
- Support spikes: two stainless steel spikes for bimini support
- Fasteners: AISI 316 stainless steel
- Connectors and mounts: marine‑grade AISI 316 stainless steel
- Included accessories: protective cover, two anti‑wind props
- Installation: quick and easy with snap fastenings
- Main dimensions: length 240 cm; height 140 cm; available widths 170 / 190 / 200 / 220 / 240 cm (tolerance ±15 cm)
