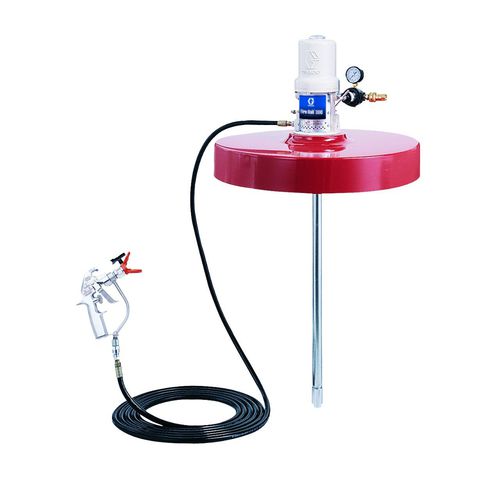

Shipyard pump Fire-Ball 15:1
transferlubricationfor paint

shipyard pump
shipyard pump
shipyard pump
Add to favorites
Compare this product


Characteristics

Application domain
for shipyard
Applications
transfer, lubrication
Fluid
for paint
Operation
pneumatic
Flow rate

3 l/min (0.79 us gal/min)

Description

Undercoating / Rustproofing Packages Fire-Ball 300, 15:1 Specialty Pumps and Packages Availalbe in carbon steel for petroleum-based or SST for water-based materials Durable air motor provides trouble-free operation 15:1 Fire-Ball 300 Pumps Maximum working pressure 186 bar Fluid pressure ratio 15:1 Air operating range 3 to 12 bar Air motor effective diameter 76 mm Stroke 76 mm Air consumption 0.476 sq m/l at 7 bar. Up to 0.84 sq m/min with pump operated at 12 bar and 66 cycles/min Pump cycles 24 cycles/l Delivery 3 l/min Maximum recommended continuous pump speed 66 cycles/min, 32 l/min Recommended speed for optimum pump life 15 to 25 cycles/min Wetted parts Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather Approximate 10 kg

Catalogs
