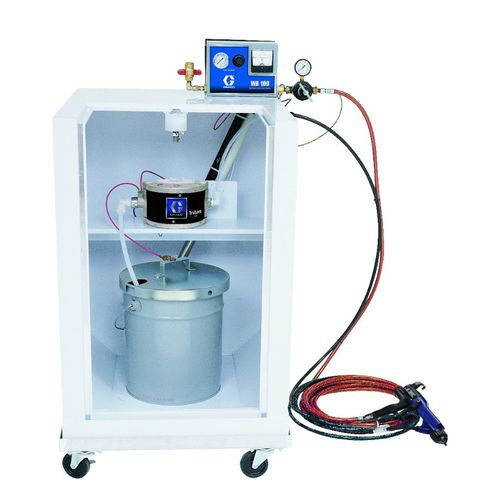

Mobile paint spraying machine WB100 series

for shipyards

WB100 Air Spray Waterborne Isolation System The simple and reliable way to isolate waterborne coatings The Graco WB100 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems. Ideal for low pressure waterborne material spraying with the Pro Xp60 WB gun for a superior finish quality and operator comfort Triton 1:1 150 Series pump delivers a consistent spray pattern and uniform film thickness Standard voltage display allows for easy monitoring of voltage for overall performance Simple 5 gallon (19 l) pail design is easy to color change and flush the system Electrostatic gun Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier Portable cabinet increases mobility for a wide variety of applications Maximum Working Fluid Pressure 7.0 bar, 0.7 MPa Maximum Working Air Pressure 7.0 bar, 0.7 MPa Minimum Air Pressure at Gun Inlet 2.8 bar, 0.28 MPa Maximum Fluid Operating Température 48°C Paint Resistivity Range 3 megohm-cm to infinity Short Circuit Current Output 125 microamperes Gun Air Inlet Fitting, left hand thread 1/4 npsm(m) Gun Weight788 gm Gun Length28.2 cm Isolation Enclosure Air Inlet Fitting1/4 npt Isolation Enclosure Fluid Inlet Fitting10 mm OD tube Isolation Enclosure Weight56.3 kg Isolation Enclosure Height1118 mm Isolation Enclosure Width610 mm Isolation Enclosure Depth737 mm
