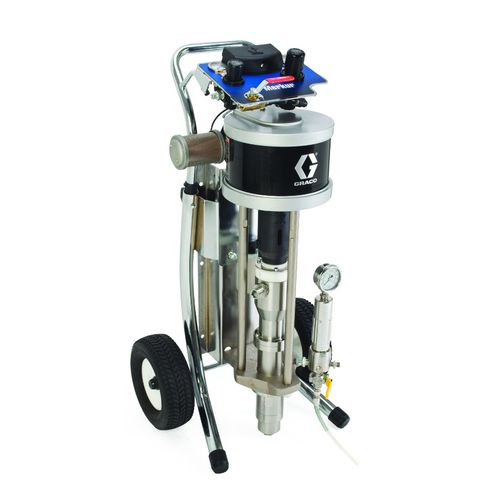

Shipyard pump Merkur Bellows

transferlubricationfor paint

Merkur Bellows Piston Pumps Plunger Bellow Seals Piston Pumps Improved bellows seal design eliminates throat seal leakage and lubrication Graco’s bellows pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials. Highest technology air motor on the market Low air consumption for increased efficiency Simple air motor design and minimal parts reduces repair time Easy-to-flush design allows for fast color changes and reduced material waste 300 series stainless steel pump construction provides long-lasting durability Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime Merkur Bellows Pump Maximum fluid inlet pressure 1.0 bar, 0.1 MPa Maximum fluid temperature 71°F Ambient temperature range 2° to 49°F Stroke length 64 mm Wetted parts PEEK, PTFE, stainless steel, tungsten carbide, UHMWPE Maximum Fluid Working Pressure Models LB050A and LB050B 310 bar, 33.1 MPa Models LB100A and LB100B 248 bar, 24.8 MPa Models LB150A and LB150B 165 bar, 16.5 MPa
