Recreational sport catamaran HAPPY CAT STAR MINI

single-handedmultipleEPDM

Overview

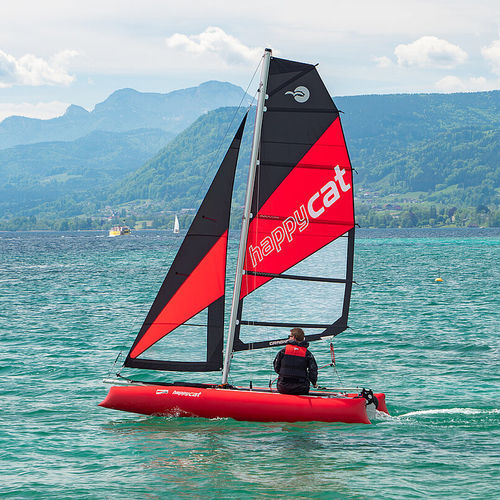

The HAPPY CAT STAR MINI is a compact, transportable sailing catamaran that brings proven technology into a format optimised for single-handed use and easy packing. It fits into two wheeled bags and one sail bag, requires no trailer and assembles quickly by one person. Capacity is up to 3 adults + 1 child with a maximum payload of 350 kg.

Packing & Transport

• Packed into 2 wheeled bags (approx. 185 × 30 × 30 cm) for hulls, frame, mast parts, rudder, centreboards and small parts; longest single part: 181.5 cm (upper mast part).
• 1 sail bag (approx. 180 × 30 cm) for mainsail and jib.
• Fits many cars and camper vans; no trailer required. Suitable for storage in garage, cellar or shed.

Capacity & Use

• Optimised for solo sailing; also suitable for family and day tours.
• Maximum persons: 3 adults + 1 child.
• Maximum payload: 350 kg.
• Assembly time: approx. 30 minutes.

Hull & Material
The wave‑piercing hull shape reduces water resistance for improved speed and handling. Key characteristics include:

• Slightly raised bow and stern for reduced resistance and smooth gliding.
• Up to 30% higher average speed versus conventional hull shapes.
• Wave‑piercing bow to cut waves and lower drag; low bow edge for reduced wind resistance and easier tacking.
• Large hull diameter (47 cm) for extra buoyancy and higher waterline.
• 1100 dtex EPDM one‑piece vulcanised construction with inner natural rubber coating for airtightness; PVC‑ and phthalate‑free, impact and abrasion resistant, easy to repair.

Frame & Rig
Lightweight precision frame and high‑tech corners provide stability and fast assembly.

• 4‑part profile frame with bolt rope track for direct trampoline feeding and quick tensioning.
• One‑piece precision corners (no weld seams) for exact fit, low weight and reduced twisting.
• Generously dimensioned mast profile with custom plug connections and near‑watertight joints; integrated mast base joint for easy single‑person raising/lowering.
• 4‑point bowsprit bracing and redundant forestay/shrouds for increased rig stability.

Sails & Sail Handling

• Mainsail: 6 m², fully battened, modern boomless cut, wider upper section for light‑wind drive, large windows for visibility, 5‑position clew adjustment.
• Jib: 3 m², optimised lead points near the mast, large viewing window, endless furling system for easy reefing and deployment.
• Total sail area: 9 m². Combined sail weight approx. 4.90 kg.
• Traveller and trimming system enable precise mainsail control (control lines and cleats provided).

Key Equipment & Options
Standard delivery includes hulls, safety valves, 4‑part profile frame, trampoline mesh, centreboard, rudder, 3‑part carbon mast, forestay, traveller, mainsheet, jib furler, repair kit, packing bag set and manual. Optional accessories: cushions, bowsprit cover, launching wheels, motor bracket (up to 3 HP / 22 kg), masthead float, furling booster, strong‑wind sail set, cover tarp, waterproof bags, trapeze system, etc.

Benefits Summary

• Compact pack size and low weight for easy transport and storage.
• Quick assembly and single‑handed handling (mast base joint, sail track, bolt rope trampoline).
• Efficient hull design and stiff frame for good performance and responsive handling.
• Durable, repairable materials for long service life.

Technical data (summary)
Overall Length × Width: 420 × 212 cm — Trampoline: 173 × 135 cm — Hull length × DM: 400 × 47 cm — Mast Height: 497 cm — Weight: 59 kg — Pack bags: 2 × 185 × 30 × 30 cm — Sail bag: 180 × 30 cm — Longest item: 181.5 cm — Max persons: 3+1 — Payload: 350 kg — Air chambers: 2 — Assembly time: 30 min — Operating pressure: 0.3 bar — Material: 1100 dtex EPDM — Headsail / mainsail: 3 m² / 6 m² — Sail area: 9 m² — Recommended wind: up to 4 Beaufort — Optional engine: 2.2 kW / 3 hp — Motor weight limit: 22 kg — Shaft length: long (L) or short (S) — ISO: ISO EN 6185 cat. VI — Design Category: C — Colour: red

Included in delivery (standard)

• 2 wavepiercing hulls
• 2 safety valves
• 1 profile frame (4 parts)
• 1 trampoline mesh with snap‑buckles
• 1 double toe‑strap
• 1 net pouch for lines
• 1 bowsprit and 2 tensioning stays
• 1 centreboard and 1 rudder
• 1 mast (carbon, 3 parts) and 1 mast foot ball joint
• 2 double shrouds and 2 neoprene shroud protections
• 1 jib (3 m²) and 1 mainsail (6 m²)
• 1 endless jib furler, 1 forestay, 1 traveller, 1 mainsheet 4:1
• 2 shroud wind indicators
• Drillings for motor mounting and slipping wheels
• 1 packing bag set (3 parts), 1 specification label, 1 repair kit, 1 valve key, 1 pressure relief adapter, 1 owners manual with declaration of conformity

Technical specifications

• Model: HAPPY CAT STAR MINI
• Overall dimensions: 420 × 212 cm
• Trampoline: 173 × 135 cm
• Hull diameter (DM): 47 cm
• Mast height: 497 cm
• Total weight: 59 kg
• Pack bags: 2 × 185 × 30 × 30 cm; sail bag: 180 × 30 cm
• Longest single part: 181.5 cm (upper mast part)
• Max persons: 3 adults + 1 child
• Payload: 350 kg
• Air chambers: 2
• Assembly time: 30 minutes
• Operating pressure: 0.3 bar
• Material: 1100 dtex EPDM (vulcanised)
• Sails: jib 3 m² / mainsail 6 m² — total 9 m²
• Recommended wind: up to 4 Beaufort
• Optional engine: up to 2.2 kW / 3 hp (motor up to 22 kg)
• ISO / Category: ISO EN 6185 cat. VI — Design Category C
• Colour: red
