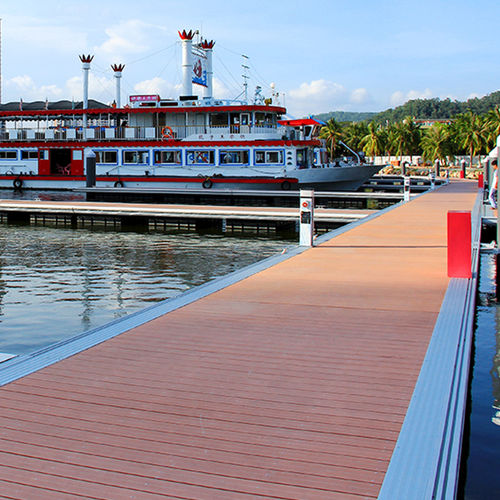

Floating dock ALM3000
mooringfor boatsfor yachts

floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
floating dock
Add to favorites
Compare this product


Characteristics

Type
floating
Use
mooring
Applications
for boats, for yachts
Material
plastic, aluminum, galvanized steel, steel, stainless steel
Other characteristics
custom, piling-supported
Length

Max.: 11.8 m
(38'08" )

Min.: 4 m
(13'01" )

Width

3 m
(9'10" )

Freeboard

45 cm
(18 in)

Weight

235 kg
(518 lb)

Description

Main Structure: 6061-T6 or 6082-T6 marine aluminum alloy extruded profile, MIG welding forming. Manufacture References: EN ISO 15614-2 & ASTM A370-2012 Dock Float: Standard LLDPE dock float (optional for concrete floating box) Pavement: Standard non-slip WPC/PE decking Fender: Standard PE/rubber fender, LLDPE corner sheath Connection Bolt: Standard 316 stainless steel material Pontoon Connection: Anti-fatigue and noise-free rubber composite elastic module Mooring Cleat: Standard 316 stainless steel material( or marine aluminum alloy material) 1. Australian Standard Guidelines For Design of Marinas (AS3962-2001) 2. For the Design, Construction and Operation of Coastal and Inland Marinas and Yacht Harbours 3. Aluminum and aluminum alloys—Extruded rod/bar, tube and profiles (BS EN 755-2:2008) 4. Aluminum and aluminum alloys—Chemical composition and form of wrought products (BS EN 573-2:1995); 5. Structural use of aluminum BS 8118 part1:1991 6. Welding—Recommendations for welding of metallic materials—Part4:Arc welding of aluminum and aluminum alloys (BS EN1011-4) 7. Other design references: different regional design codes and customers' customized requirements.
