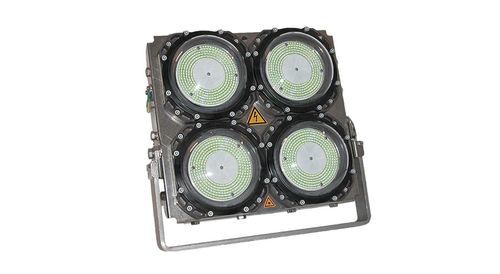

Exterior floodlight FL60N

marineboatLED

Product description
The FL60N series are LED floodlights designed for long service life and high luminous efficiency in marine and harsh outdoor environments. The LEDs provide instant light and maintain operation despite voltage fluctuations. The seawater‑resistant anodized aluminium module housing promotes effective thermal management. Mounting frame and bracket are stainless steel.

Item list

• FL60N10107 — FL60N 5300 NVIS/G 230 M25 BN MB GRP: Nominal Lumen out: 5300; Colour / LED: NVIS GREEN (NVIS/G); IP Class: 66/67; Min AC Voltage: 220 V; Max AC Voltage: 240 V; Min Ta (°C): -45; Max Ta (°C): 55; Cable gland: M25 (nickel plated brass).
• FL60N10109 — FL60N 4500 840 230 M25 BN MB GRP: Nominal Lumen out: 4500; Colour temp: 4000 K (840); IP Class: 66/67; Min AC Voltage: 220 V; Max AC Voltage: 240 V; Min Ta (°C): -45; Max Ta (°C): 55; Cable gland: M25 (nickel plated brass).
• FL60N11102 — FL60N NVIS/G 120 M25 BN MB GRP: LED: NVIS GREEN (NVIS/G); IP Class: 66/67; Min AC Voltage: 110 V; Max AC Voltage: 120 V; Min Ta (°C): -45; Max Ta (°C): 55; Cable gland: M25 (nickel plated brass).
• FL60N21101-G1 — FL60N 4500 NVIS/G 850 120 DIM M24 BN MB: Nominal Lumen out: 4500; Colour temp: 5000 K (850); Dimmable variant; IP Class: 66/67; Min AC Voltage: 110 V; Max AC Voltage: 120 V; Min Ta (°C): -45; Max Ta (°C): 55; Cable gland: M24 (nickel plated brass).

Available options / summary

• Nominal lumen options observed: 4500, 5300 lm.
• Colour temperatures observed: 4000 K, 5000 K and NVIS GREEN (NVIS/G) variant.
• IP classification: 66/67 — suitable for intensive ingress protection in marine environments.
• AC voltage options observed: 110 V, 120 V, 220 V, 240 V.
• Operating ambient temperature range observed: Min Ta -45 °C to Max Ta 55 °C.
• Cable gland options: M24 and M25 (nickel plated brass).
• Additional variant: dimmable option available for selected models.

Technical specifications

• Product family / model: FL60N.
• Type: LED floodlight / area lighting for marine and outdoor use.
• Housing: Seawater‑resistant anodized aluminium module housing for effective cooling.
• Mounting: Mounting frame and bracket in stainless steel.
• Light source: LED — instant start, tolerant to voltage drops.
• IP class: 66/67.
• Nominal lumen output: examples include 4500 lm and 5300 lm (model-dependent).
• Colour temperature: examples include 4000 K, 5000 K and NVIS GREEN (NVIS/G) variants.
• Voltage: Variants available for 110–120 V and 220–240 V (model-dependent).
• Operating temperature range: -45 °C to +55 °C (model-dependent).
• Cable gland material: Nickel plated brass (M24 or M25 depending on model).
• Additional variants: Dimmable option indicated for some items.
