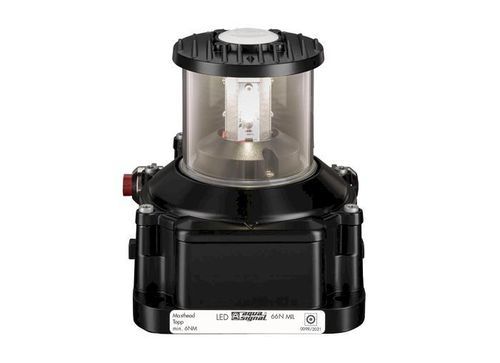

Ship navigation light 66N MIL

LEDyellowwhite

Overview
Family 66N is available in Single version (Series 66N MIL), Double version (Series 66ND MIL), Single Arctic version (Series 66N MIL Arctic) and Double Arctic version (Series 66ND MIL Arctic). Arctic versions include an internal heating foil on the inside of the glass lens for reliable low-temperature operation. Series 66N MIL covers a complete range of LED navigation lights for naval applications on vessels from 20 m in length and fulfils the International Regulations for Preventing Collisions at Sea (COLREG) 1972. The Series 66N MIL is developed to meet specific naval requirements and is designed and tested according to MIL specifications for EMC, shock and vibration.

Features & variants

• Available versions: Single (Series 66N MIL), Double (Series 66ND MIL), Single Arctic (Series 66N MIL Arctic), Double Arctic (Series 66ND MIL Arctic)
• Arctic versions include internal heating foil for low-temperature operation
• Special versions: Flashing, Hoisting, Dome Light, Wake Light, Steering Light, Morse
• NVG (Night Vision Goggles) compatibility for specific naval needs
• Units can be grouped and programmed according to customer requirements
• SRTP (Safe Return To Port) option available for MIL Navigation Light Systems

Power & control
Navigation light nominal voltage: 24 V DC. Navigation Light Controller input voltage is flexible; system input to the switch cabinet can be 24 V DC, 115 V AC or 120–240 V AC depending on configuration.

Approvals & certificates
Wheelmark (MED Certificate - Approved by DNV), UL1104 and USCG certification.

Item list (available product items shown on the page)

• 3322182000 — 66N MIL LED WAKE LIGHT WHITE 24° 24VDC BLACK
• 3328583000 — 66N MIL LED STEERING LIGHT BLUE 24VDC BLACK
• 3680183000 — 66N MIL LED A/R GREEN 360° 24VDC
• 3680183003 — 66N MIL LED A/R GREEN (2x180°) STB+PORT 24VDC
• 3680283000 — 66N MIL LED A/R RED 360° 24VDC
• 3680283003 — 66N MIL LED A/R RED (2x180°) STB+PORT 24VDC
• 3680783000 — 66N MIL LED A/R WHITE 360° 24VDC
• 3680783003 — 66N MIL LED A/R WHITE (2x180°) STB+PORT 24VDC
• 3680883000 — 66N MIL LED MORSE WHITE360° 24VDC
• 3681083000 — 66N MIL LED MASTHEAD WHITE 225° 24VDC
• 3682283000 — 66N MIL LED STERN RED 135° 24VDC
• 3682483000 — 66N MIL LED STERN YELLOW 135° 24VDC

Technical specifications

• Design & testing: in accordance with MIL specifications for EMC, shock and vibration
• Navigation light nominal voltage: 24 V DC
• Controller / switch cabinet input: 24 V DC, 115 V AC or 120–240 V AC (system dependent)
• Temperature variants: Arctic versions with internal heating foil for low-temperature operation
• Options: Flashing, Hoisting, Dome Light, Wake Light, Steering Light, Morse; SRTP option available
• Compatibility: NVG compatibility available for specific naval requirements
• Certifications: Wheelmark (MED Certificate - Approved by DNV), UL1104, USCG
• Light source: LED
• Example operational temperature range on page: Min Ta -25 °C, Max Ta +55 °C (varies by item/version)
