Outboard small boat G4

planing hullopenside console

Product description

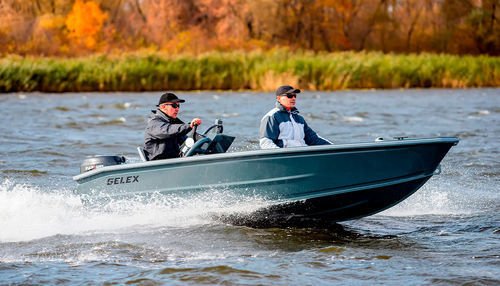

GELEX G4 is a three-seater universal boat for active water recreation. It accepts an outboard engine from 10 to 30 HP. The hull offers high stability, easy handling and a quick transition to planing. Available with a tiller or remote control using a console with windshield.

Standard features

• Hull fully painted with gray polyester powder coating (RAL 7011)
• Reinforced bow platform with provision for additional equipment (anchor winch, electric anchor)
• T-shaped profile for mounting movable seats, a sofa and other equipment along cockpit niches
• Insert elements for rack under the seat — 2 pcs
• Hinges for locker covers
• Stainless locks for locker covers
• Dark gray PVC rubrail profile, fixed in external T-slot
• Bow cleat 1 pc; stern cleats 2 pcs
• Internal aluminum transom cover 1 pc
• External plastic transom cover 1 pc
• Mounting platform for fishfinder/echo sounder
• Buoyancy blocks compliant with ISO 6185 standard
• Drainage system
• Lockers: bow self-draining locker 1 pc
• Side self-draining lockers for gear and accessories – 3 pcs
• Anchor compartment 1 pc
• Adjustable internal side handles in T-slot 4 pcs
• Keel protection
• Polyamide mooring cleats 4 pcs
• Folding oars with storage bag 2 pcs

Optional equipment

• Hull painting in alternative color
• Exterior side wrapping with decorative film
• Inner hull carpeting with marine carpet
• Internal cockpit surface wrapping with EVA Marine Deck materials (SeaDeck)
• Steering consoles: GC-01, GC-01L
• Mechanical steering system: wheel, gearbox, cable
• Removable side railings – 4 pcs
• Aluminum seats with fixation, adjustable along full cockpit length
• Swivel seats
• Aft adjustable two-seater sofa platform GS 03
• Soft covers for aluminum seats
• Mooring canopy (shape depends on installed console)
• High-pressure pump with spray gun
• Electrical kit: control block (switching keys – 5 pcs, spare – 1 pc), 12V socket, fuse set, navigation lights (green, red), masthead light (white), battery master switch, battery tray, automatic bilge pump
• Under-seat storage bag
• Rowing kit: oars – 2 pcs, universal lock – 2 pcs
• Mesh pockets for small items – 4 pcs
• Fishing package: inner rod holders – 4 pcs
• Borika mounting system: platform with universal lock – 2 pcs; additional rod holder – 2 pcs; universal side lock on gunwale – 2 pcs; mounting platform for sonar installation; anchor holder with automatic stopper on gunwale
• Mooring / transport canopy

Technical specifications

• Length: 3930 mm
• Width: 1640 mm
• Height: 710 mm
• Draft: 250 mm
• Transom height: 381 / 510 mm
• Sheet (aluminum) thickness (side / bottom): 2.5 / 2.5 mm
• Maximum engine power: 30 HP (22.1 kW)
• Recommended engine power: 20 HP (14.7 kW)
• Maximum engine weight: 80 kg
• Maximum loading capacity: 320 kg
• Weight (with basic equipment): 180 kg (396 lbs)
• Passenger capacity: 3 pers
• Deadrise at midship: 15°
• Deadrise at transom: 12°
• Boat category (EU): D
