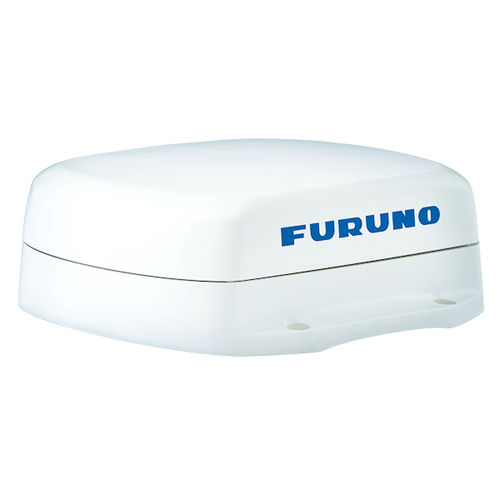

Ship gyrocompass SCX-20
for boatselectronicGNSS

ship gyrocompass
ship gyrocompass
ship gyrocompass
ship gyrocompass
ship gyrocompass
ship gyrocompass
ship gyrocompass
ship gyrocompass
Add to favorites
Compare this product


Application domain
for ships, for boats
Other characteristics
Operating temperature range

Min.: -25 °C
(-13 °F)

Max.: 55 °C
(131 °F)


1 kg
(2.2 lb)


AMAZING MULTI-GNSS SATELLITE COMPASS™ RELIABLE ACCURACY IN THE MOST CHALLENGING SITUATIONS Quad-antenna design for extreme accuracy Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas. The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed. Superior accuracy for all your sensors The SCX-20 enhances the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas. Radar Plotter True echo trails are available when the SCX-20 is connected to your Furuno Radar, helping to determine own ship’s movement as well as the movement of other vessels. Accurate speed and heading data ensures that target trails are displayed smoothly and accurately, without the jagged, zig-zag appearance common to compasses with a higher degree of deviation.
