Ship current meter CI-68

ship current meter
ship current meter
ship current meter
ship current meter
ship current meter
ship current meter
ship current meter
ship current meter
ship current meter
Add to favorites
Compare this product


Characteristics

Options
for ships

Description

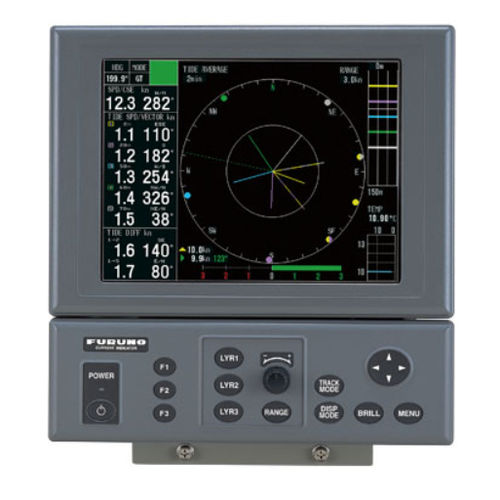

Obtain highly accurate water current measurements using FURUNO's reliable acoustic technology. The CI-68 displays tide speed and direction at three depth layers and ship's speed on a high definition 10.4color LCD. Features Compact 3-unit design for ease of installation and maintenance High definition 10.4" color LCD Black box system configuration allows for use of optional CRT or LCD monitors Continuous display of tide speed and direction at five different depth layers Triple-beam system for less error in tide current detection True tide current presentation with external GPS navigator and Satellite compass The FURUNO Cl-68 is a Doppler Sonar Current Indicator designed for various types of fish and hydrographie survey vessels. The CI-68 displays tide speed and direction at five depth layers and ship’s speed on a high défi- nition 10.4” color LCD. Using this information, you can predict net shape and plan when to throw your net. The CI-68 has a triple-beam émission system for providing highly accurate current measurement. This system greatly reduces the effects of the rolling, pitching and heaving motions, providing a continuous display of tide information. When ground (bottom) reference is not available acoustically in deep water, the CI-68 can provide true tide current information by receiving position and speed data from a GPS navigator and head- ing data from the satellite (GPS) compass SC- 50/110 or gyrocompass. In addition, navigation information, including position, course and ship ’s track, can also be displayed The CI-68 consists of a display unit, processor unit and transducer.

Catalogs

CI-68
CI-68
4 Pages
