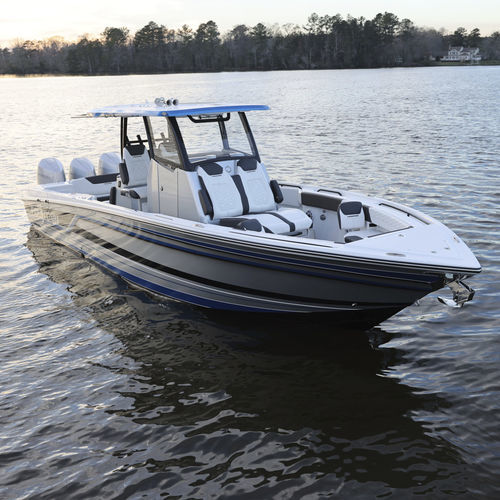

Outboard center console boat 32SCX

gasolinetriple-enginestepped hull

Overview
The 32SCX is a 32' center-console vessel engineered for high-performance cruising and serious offshore fishing. Designed with a positive lift double-step hull and tuned in Washington, NC, it pairs Fountain hull design with Mercury Racing and Verado power options to deliver strong hull-to-power efficiency and configurable layouts for anglers and family use.

Introduction
2026 model offering multiple factory configurations: hardcore fishing rigouts and versatile family/cruise setups. Standard tuning and performance-matched propulsion ensure predictable handling and optimized top-end performance.

Key highlights

• Length: 32'
• Beam: 9' 11"
• Dry Weight (approx): 11,000 lbs
• Fuel Capacity: 285 gal
• Water Capacity: 36 gal
• Bridge Clearance: 98" (without radar)
• Draft (max drives down): 29"
• Deadrise: 22°
• Hull: Positive lift double-step hull with pad keel and notch transom

Hardware Features
Vinyl extruded rub rail (black or white) with stainless insert; eight 8" pull-up cleats; four quick-release fender attachments.

Mechanical & Electrical Features
Three 2000 GPH bilge pumps with float switches; high-water alarm in bilge; Mercury DTS engine controls; HD aluminum fuel tank painted for corrosion resistance (EPA compliant); electric horn; stainless steel performance propellers; electric/hydraulic steering; Mercury trim tabs; thru-hull windlass with polished stainless plow anchor and rode kit; tinned color-coded wiring.

Console Features
Black instrument panel; stainless steel steering wheel with knob; wireless phone charging pad and dash-mounted phone holder; USB outlet in helm compartment.

Cockpit Features
Aft-facing upholstered seat with integrated cup holders; recessed bow handrails and removable bow table; forward double-wide chaise lounge with articulating armrests and insulated storage (~330 qts) including space for (2) 5-gallon buckets; five below-deck fish/storage boxes with overboard diaphragm discharge pumps; marine head with fresh-water flush and holding tank; flip-up bolsters on helm seat; folding safety ladder; center-console port light with screen; multiple rod and cup holders; transom shower and sink; T-top with overhead storage and custom welded aluminum support frame; transom door at stern platform; transhield shipping cover.

Lights Features
RGB cockpit courtesy lights; LED navigation lights including anchor light; four spreader lights on T-top (configurable); Shadow-Caster computerized RGB lighting control system.

Batteries Features
Automatic charging system for all batteries; house battery bank and multiple start battery configurations (twin/triple options as applicable).

Construction
NMMA certified. Two-piece hull and deck construction with high-density composite stringer grid and fiberglass-reinforced components. Cored, self-bailing, anti-skid fiberglass deck. Bonded, through-bolted and glass-tabbed assembly; high-density core in hull sides, keel pad and deck.

Electronics (standard package items)
Garmin electronics package with GPSMAP-8610 10" display (single); Airmar B60 transducer (upgradeable to B175H); Mercury engine monitoring via VesselView 502 or 903 depending on engine configuration; prewired for 50W Garmin dome radar.

Audio Features
Fusion RA770 touch head unit; Fusion RGBWW speakers (6) and dual 10" subwoofers; high-output Class-D amplifiers (2250W mono + 1500W 6-channel example configuration).

Power / Engine Options
Multiple Verado configurations from twin Verado 300 options up to Mercury Triple 500R; example shown with Mercury Triple 500R. HD and Sportmaster gearcase, jackplate and blueprint options available for select packages.

Fishing / Options
Rocket launcher on hardtop (7 holders); optional rod-holder packages and additional deck-mounted rod/cup holders; outriggers (Gemlux options); electric reel outlets (forward/amidship/aft); pressurized transom livewell; tackle center or alternate seating configurations.

Tops & Enclosure options
Canvas covers for dash and helm seats; sailshade or SureShade electric option aft of T-top with fabric color choices; removable covers and shade configurations.

Comfort & Convenience
16" refrigerator drawer at transom; Frigid Rigid cooler with slide-out rails at tackle center; insulated storage and removable upholstered seating; dive door with ladder; magnetic compass on dash; scuba tank holders under forward console seat.

Notes
Boat images may show optional equipment and selected power examples. Factory offers extensive electronics, fishing, comfort and appearance options to configure for owner mission.

Specifications

• Length: 32'
• Beam: 9' 11"
• Dry Weight (approx): 11,000 lbs
• Fuel Capacity: 285 gal
• Water Capacity: 36 gal
• Bridge Clearance: 98" (without radar)
• Draft (max drives down): 29"
• Deadrise: 22°
• Hull Type: Positive lift double-step, pad keel, notch transom
• Construction: Two-piece hull & deck; high-density composite stringer grid; cored fiberglass deck; bonded and glass-tabbed assembly
• Standard/Example Power: Multiple Verado twin/triple options up to Mercury Triple 500R
• Standard Electronics (example): Garmin GPSMAP-8610, Airmar B60 transducer, Mercury VesselView monitoring
